If you are interested in our Litestar LYR Outdoor Rental LED Screen, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.

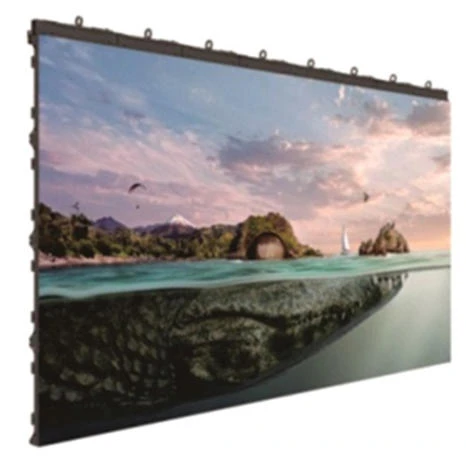

LYR Series Outdoor Rental LED Display
Corner Protection
A L-shaped plate on each corner can be turned in a right direction to ensure modules don't collide with ground or any other hard stuff; thus it can prevent modules from being damaged during transit.

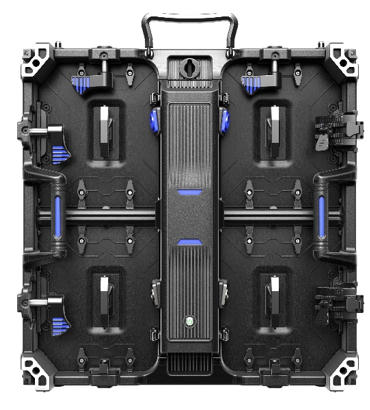

Integrated System Block
The system is designed with an integrated solution, consolidating the power supply, receiving card, and hub card within a single, removable box. This streamlined configuration enhances convenience for maintenance, allowing for easy access and removal of the box when necessary.
Test button
Test button can run a preview R/G/B/W test without connecting to a computer or any external data source.
Hanging beam (Model No. LHB0.5) Flight case((Model No. LFC)
|
Model No. |
LYR P2.6 |
LYR P2.9 |
LYR P3.9 |
|
Pixel pitch |
2.6mm |
2.9mm |
3.9mm |
|
Pixel density |
147,456 pixels/m2 |
112,896 pixels/m2 |
65,536 pixels/m2 |
|
LED type |
SMD1415 |
SMD1415 |
SMD1921 |
|
Module size |
250 x 250mm |
250 x 250mm |
250 x 250m |
|
Module resolution |
96 x 96 pixels |
84 x 84 pixels |
64 x 64 pixels |
|
Cabinet size |
500 x 500mm |
500 x 500mm |
500 x 500mm |
|
Cabinet resolution |
192 x 192 pixels |
168 x 168 pixels |
128 x 128 pixels |
|
Cabinet material |
Aluminum die-casting |
Aluminum die-casting |
Aluminum die-casting |
|
IP rating |
IP65 |
IP65 |
IP65 |
|
Maintenance method |
Rear service | Rear service | Rear service |
|
Refresh rate |
7680Hz |
7680Hz |
7680Hz |
