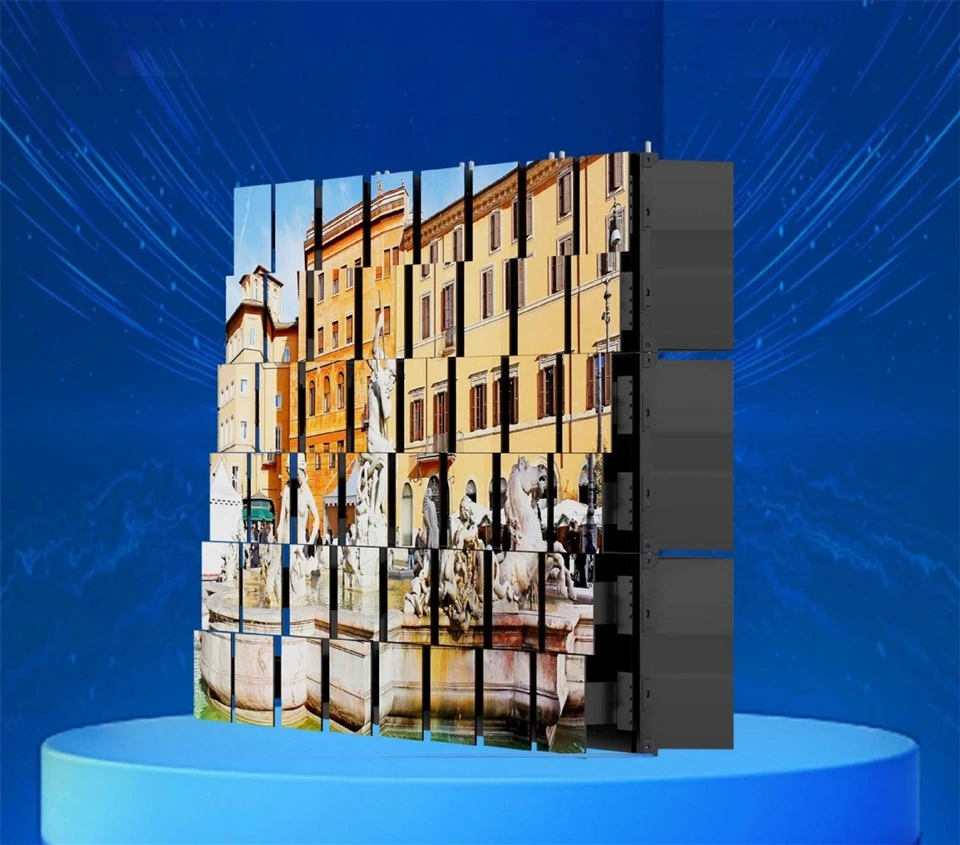

Litestar Kinetic LED Matrix Wave Display Screen Panel

The LED Matrix Wave Display features multiple independent LED modules with DMX512-driven mechanical control, creating dynamic wave-like motion effects. Available in P1.5, P1.9, and P2.5 pixel pitches with 200mm max stroke and 600-800 cd/m² brightness, this kinetic LED matrix screen delivers crisp HD visuals through real-time content updates. With cabinet-based plug-and-play design, flight case packaging, and ≥3840 Hz refresh rate, it transforms museums, exhibitions, brand stores, and transit hubs into immersive visual experiences.

Send Inquiry

If you are interested in our litestar kinetic led matrix wave display screen panel, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.

Litestar Kinetic LED Matrix Wave Display Screen Panel

- LED Matrix Wave Display -

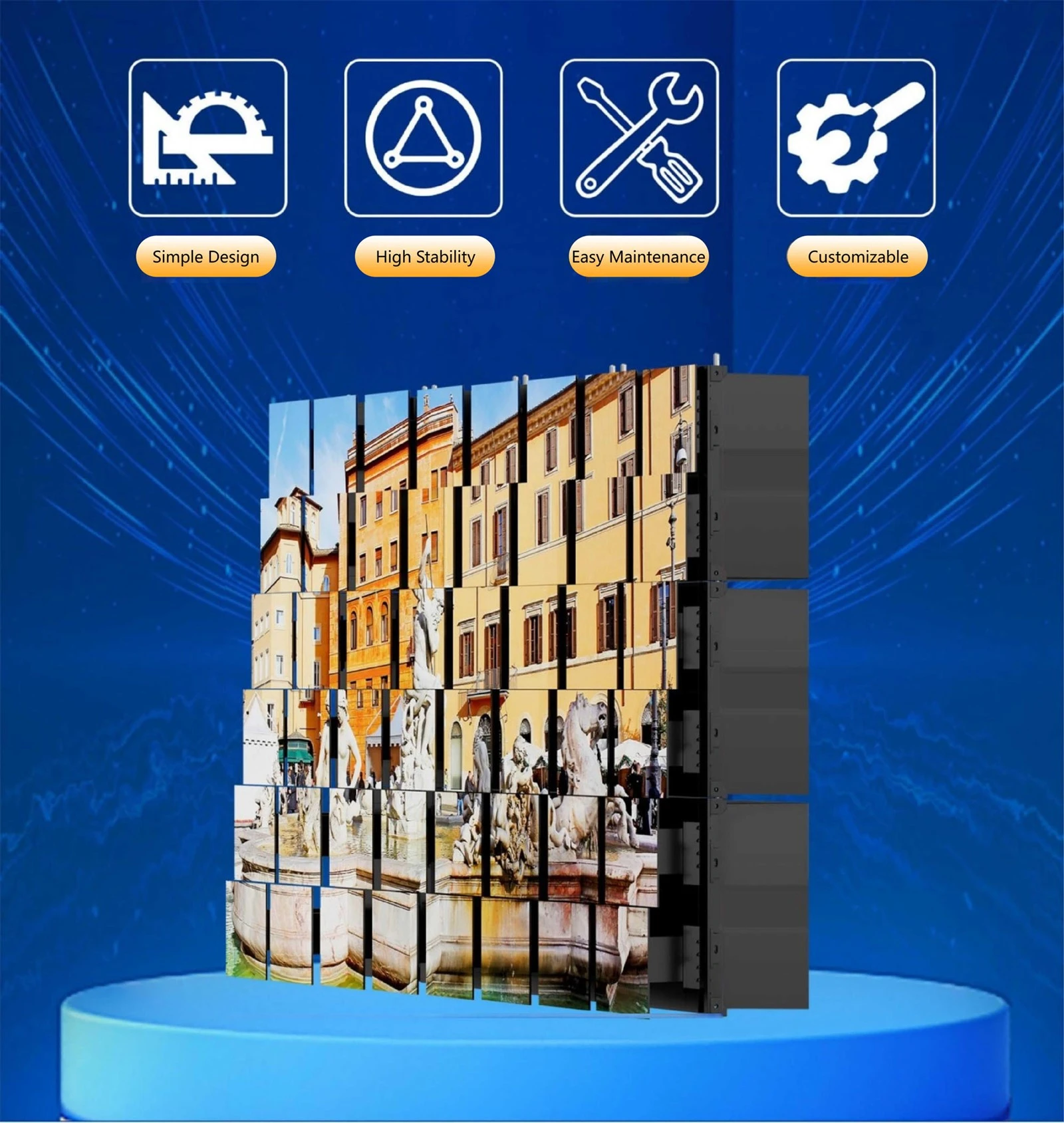

Kinetic LED Matrix Wave Display

Matrix Screen Parameters


Model	P1.5	P1.9	P2.5
Single-Matrix Size (mm)	250×250	250×250	250×250
Matrix Resolution (pixels)	160×160	128×128	100×100
Matrix Gap (mm)	2	2	2
Max Forward Stroke (mm)	200	200	200
Max Forward Speed (mm/s)	300	300	300
Cabinet Size (mm)	504×504 (2×2)	504×504 (2×2)	504×504 (2×2)
Cabinet Thickness (mm)	325	325	325
Cabinet Weight (kg)	17	17	17
Screen Brightness (cd/m²)	600–800	600–800	600–800
Refresh Rate	≥3840 Hz	≥3840 Hz	≥3840 Hz
Input Voltage	AC 110–240 V, 50–60 Hz	AC 110–240 V, 50–60 Hz	AC 110–240 V, 50–60 Hz

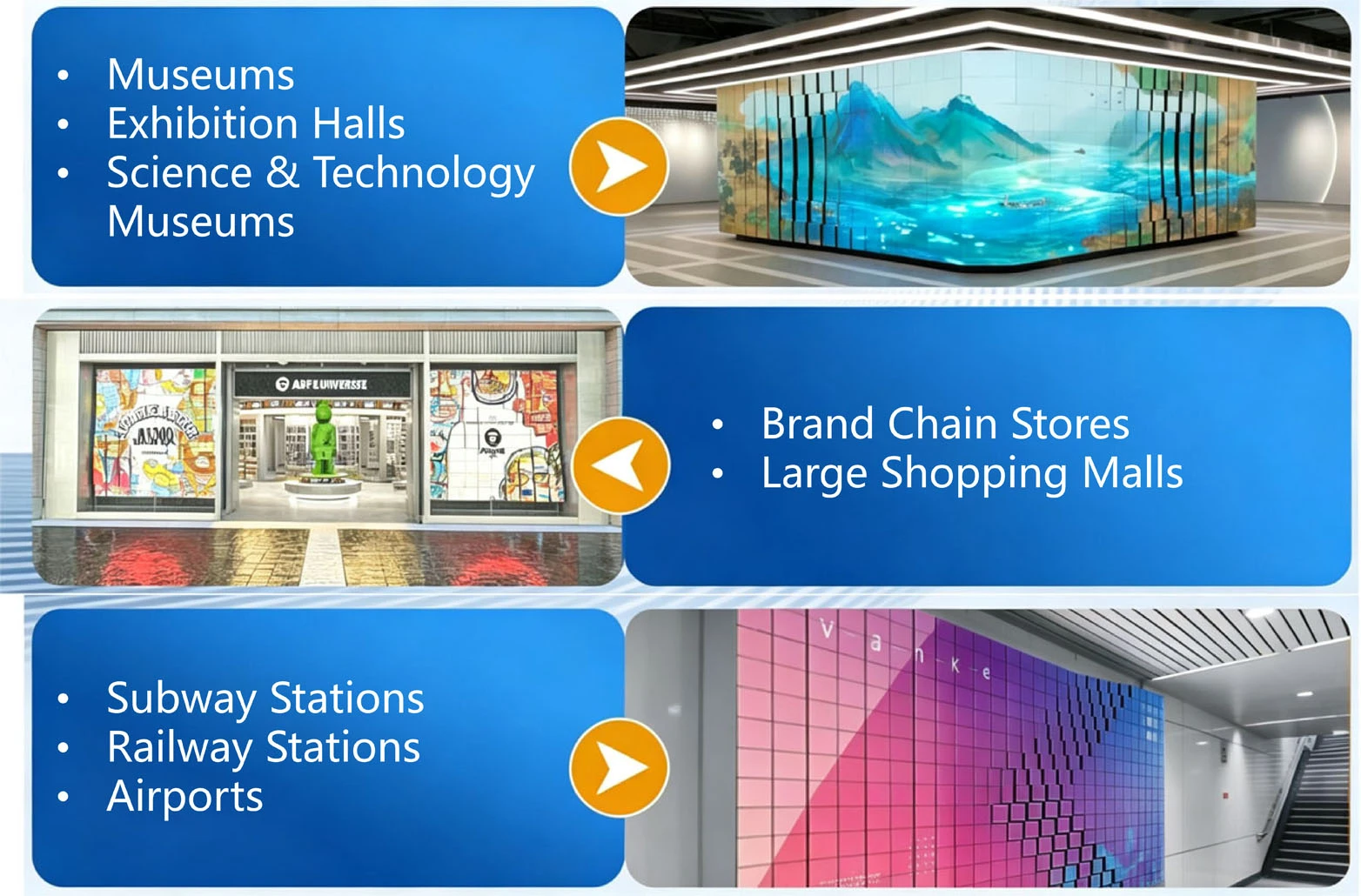

Wide Range of Applications

Kinetic LED Matrix Wave Display

Four Core Features

01 Flexible & Controllable

Composed of multiple independent LED modules, it adjusts matrix amplitude, color, and animation effects as needed to deliver diverse displays.

02 HD Display

High-density LED modules deliver crisp, fine image quality.

03 Easy Installation & Maintenance

Cabinet-based design-cabinets install in any order, no sequencing required.

04 Control System

An advanced control system enables real-time content updates and diverse displays.

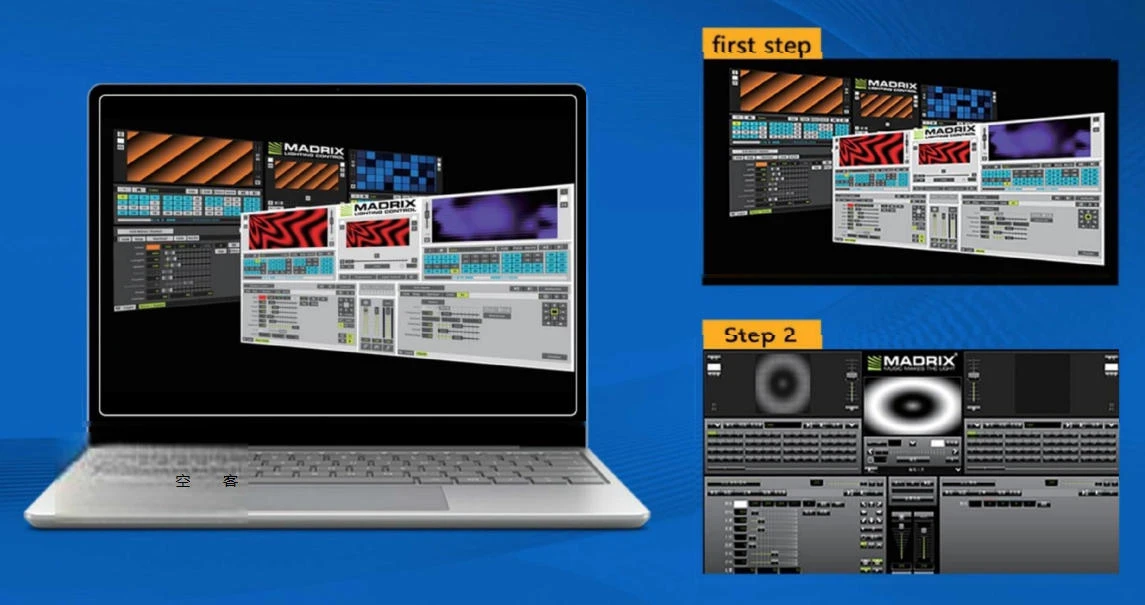

Software Control

Motorized LED Matrix Screen

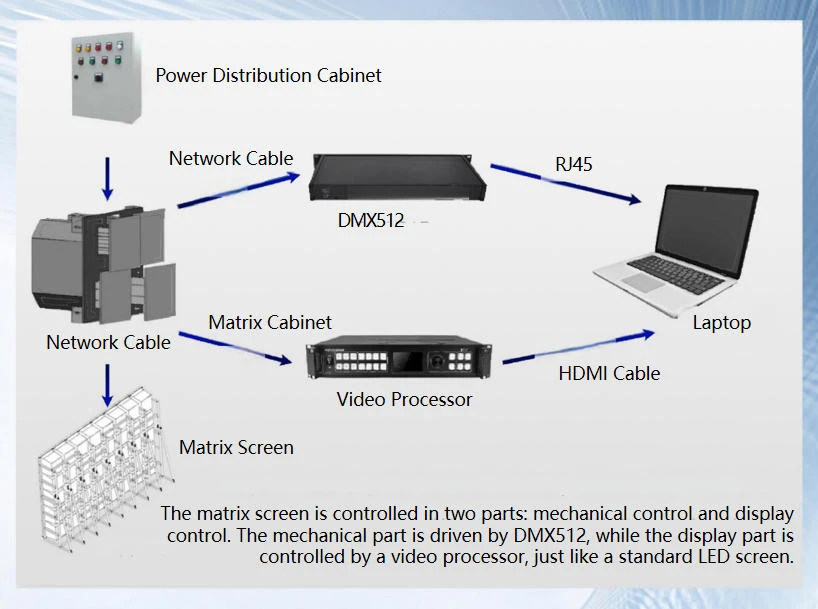

Hardware Connection Diagram

Motorized LED Matrix Screen

Matrix Screen Showcase

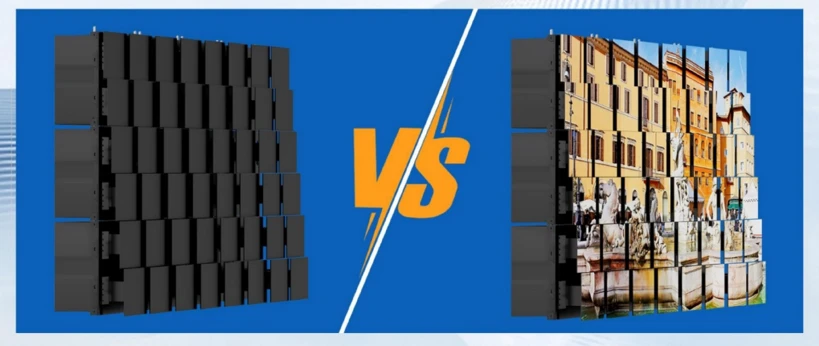

DMX512 LED Matrix Display

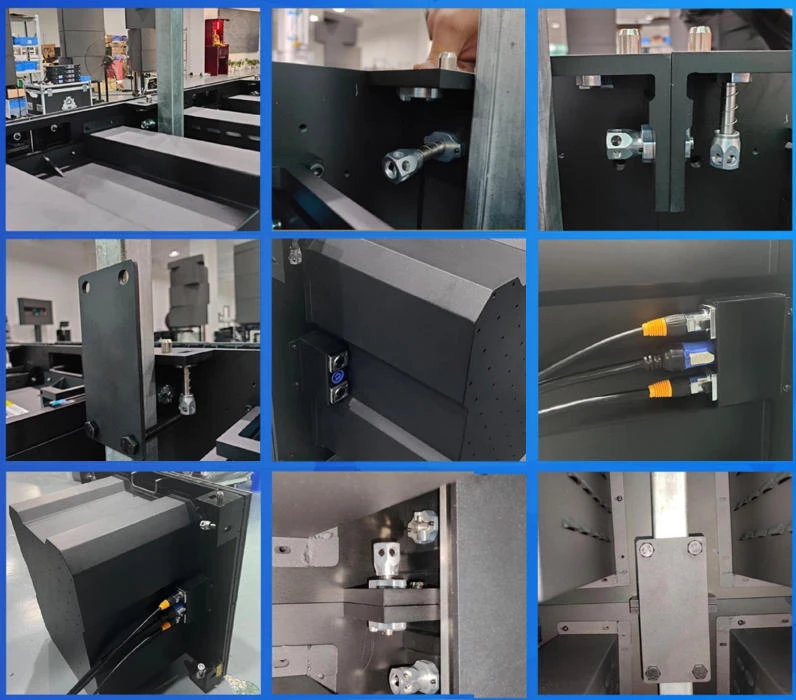

Assembly Detail Shots

With a cabinet-based design, installation is the same as an LED rental screen-just connect the cabinets, no need to adjust individual matrix gaps. Setup and commissioning are extremely fast.

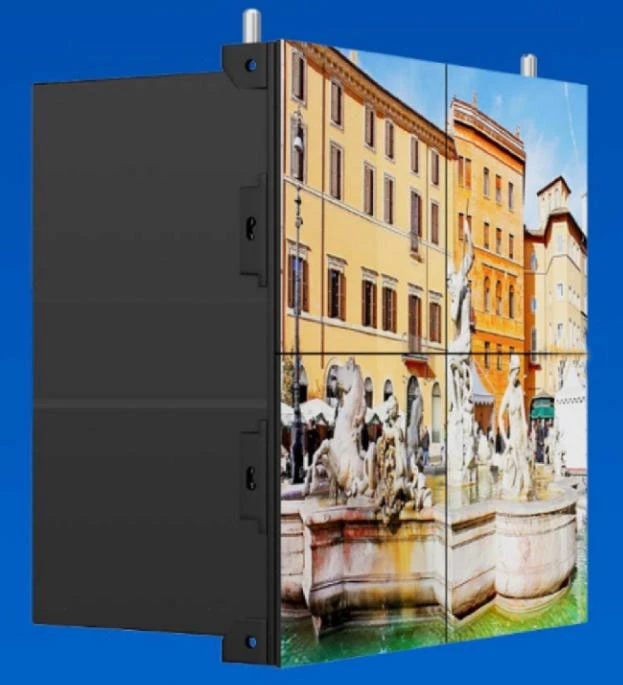

Single Cabinet

Combined Cabinet

Setup Complete

Telescopic LED Matrix Display

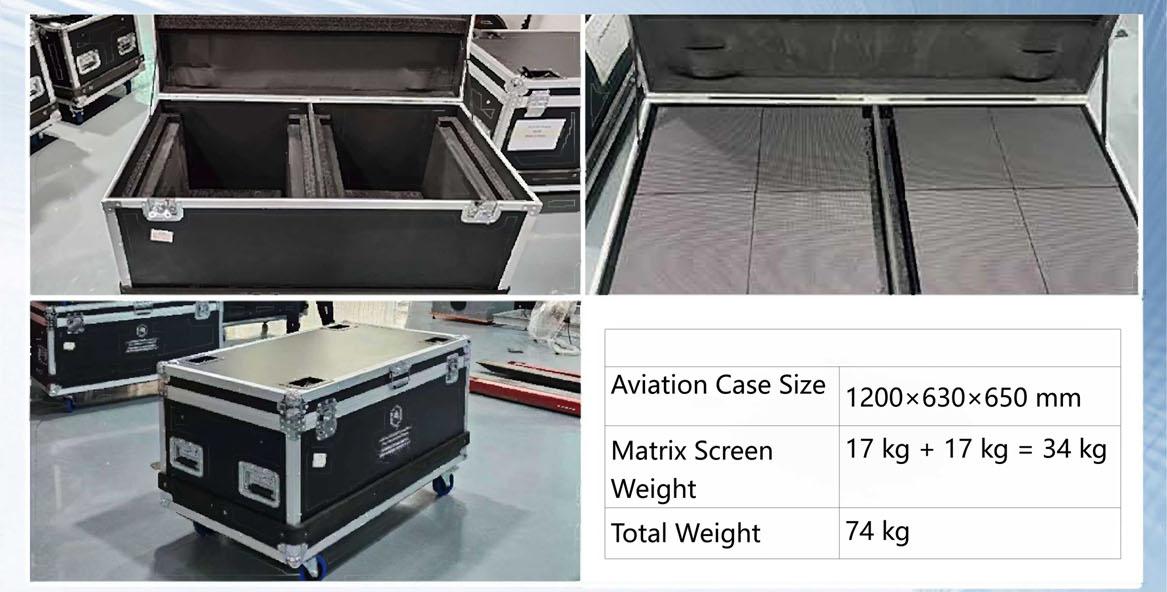

Flight Case for Rental LED Matrix Screen

All flight cases are made of high-strength, high-efficiency cushioning materials compliant with aviation transport standards, ensuring durability and stability in air transport environments.

Kinetic Matrix LED Panel

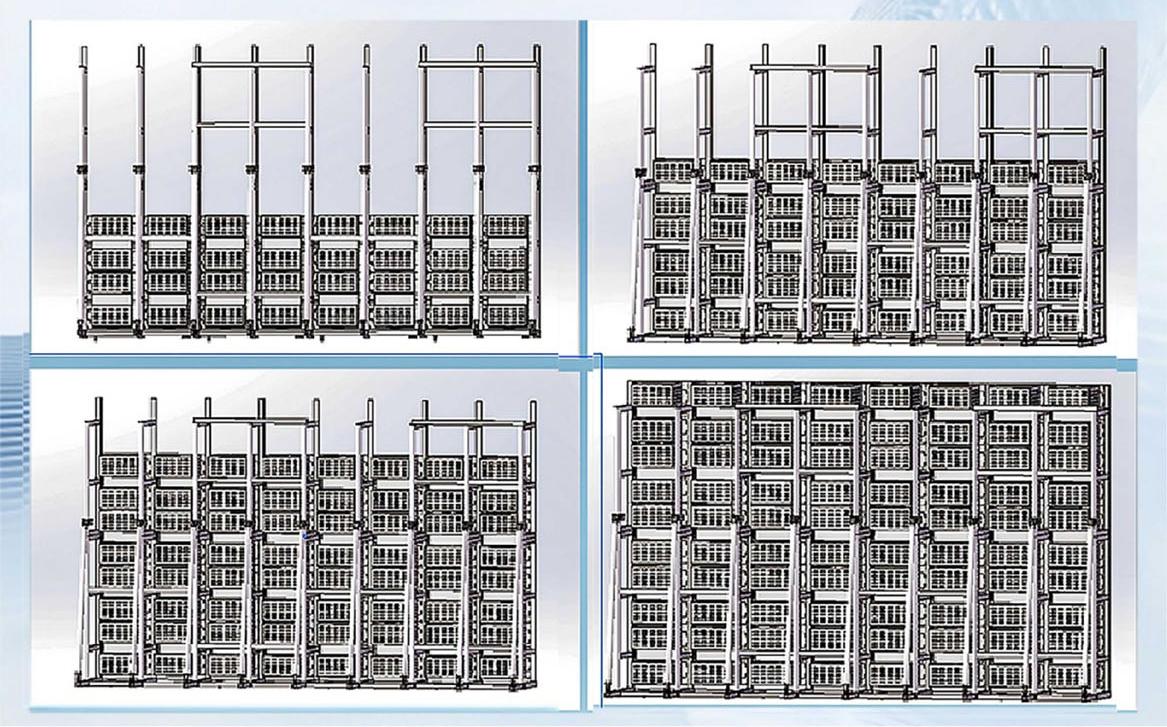

Matrix Screen Rental & Installation

Kinetic Matrix LED Panel

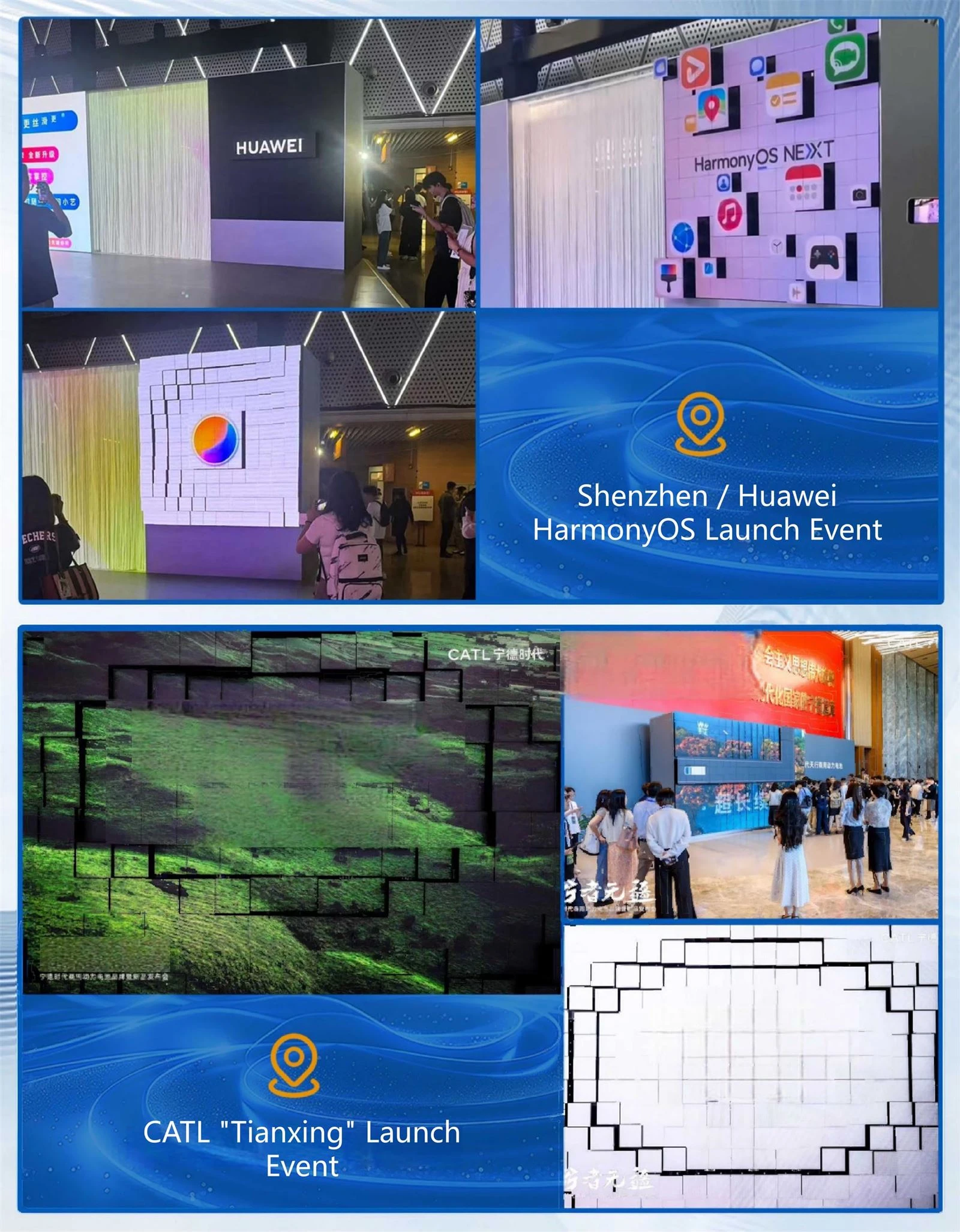

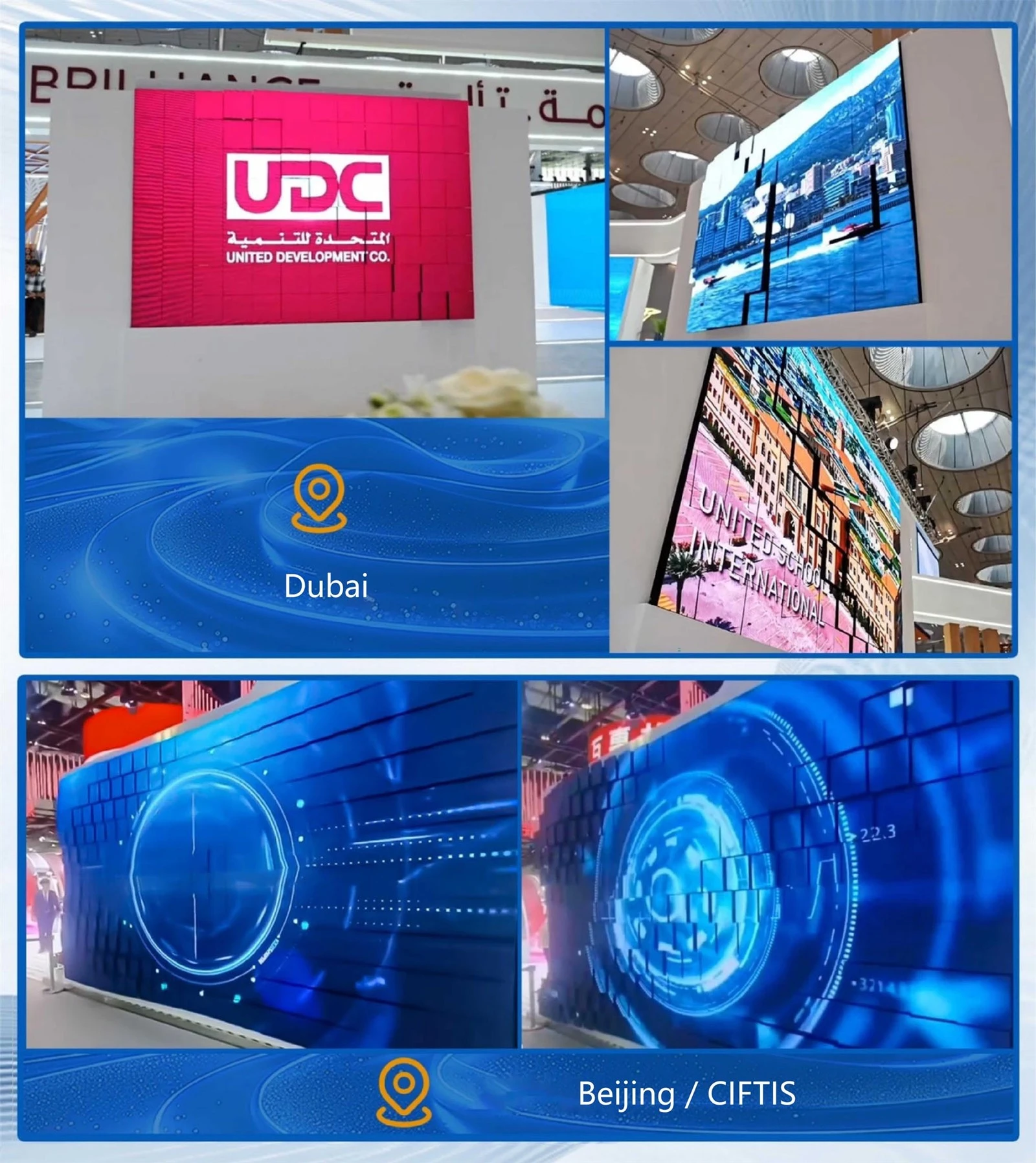

Case Studies

Motorized Matrix Wave LED Display
