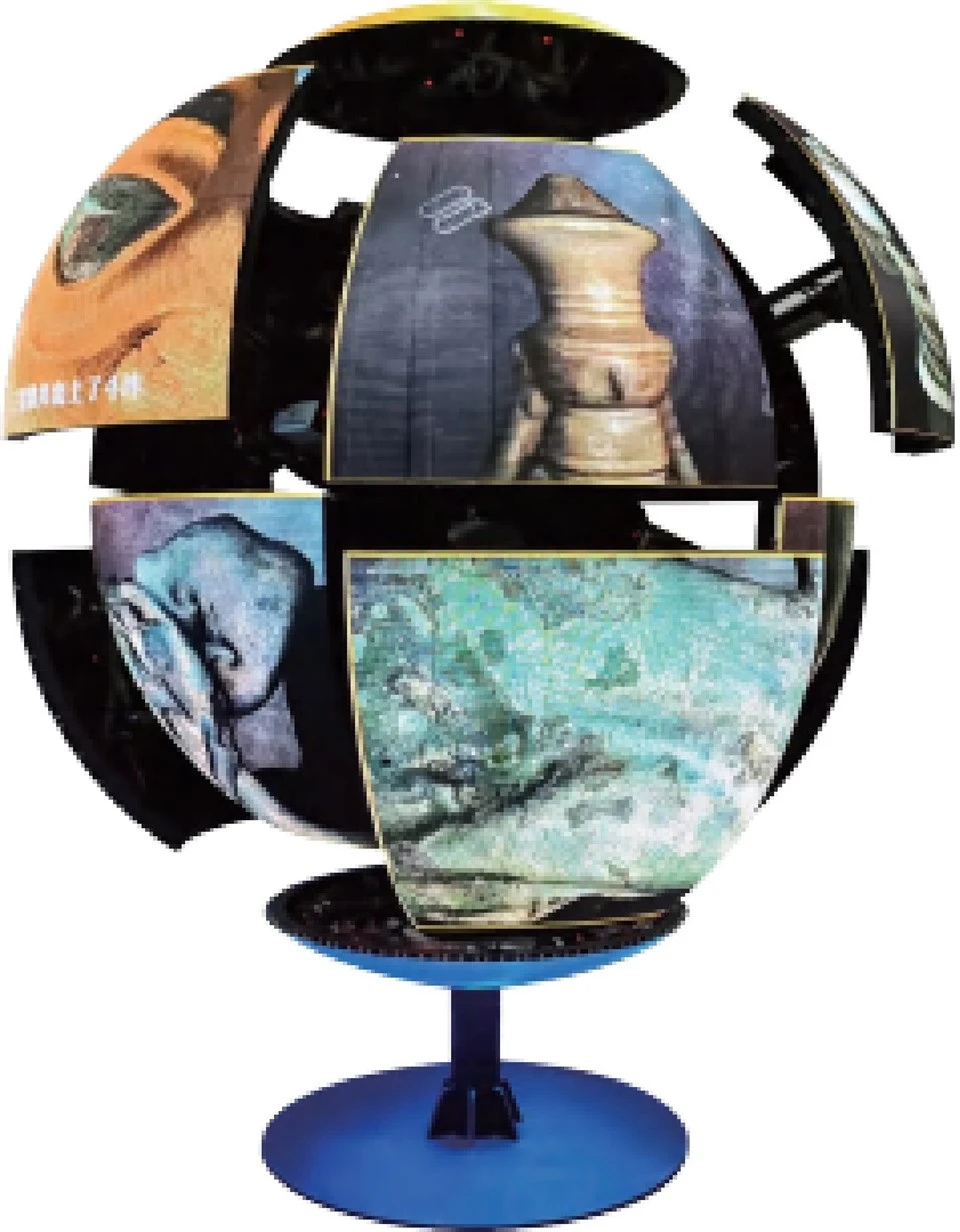

Litestar L-KSD Series Kinetic LED Sphere Display

The L-KSD Series Kinetic LED Sphere Display features a motorized telescopic structure with 14 spherical segments, delivering stunning 360° free-form visuals. Available in 1.5m to 3m diameters with P2/P2.5 pixel pitches, this innovative kinetic LED sphere supports customizable motion modes via intuitive software control — no programming required. With modular design for easy maintenance, real-time video-mechanical synchronization, and flight case packaging, it transforms museums, exhibitions, and brand events into immersive visual experiences.

Send Inquiry

If you are interested in our litestar l-ksd series kinetic led sphere display, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.

LITESTAR L-KSD Series Kinetic LED Sphere Display

Kinetic LED Sphere Display Features

01/

Free-form Display

The LED telescopic led sphere adopts a spherical design, delivering a full 360° viewing effect and enabling richer free-form graphics and dynamic visuals.

02/

High-definition display

Built with high-brightness LED lamps, the led sphere delivers high brightness, high contrast and high resolution for vivid, sharp visuals.

03/

Fully Customizable

The kinetic sphere can be customized to client needs - diameter, resolution, color and more - to meet diverse individual requirements.

04/

Easy installation and maintenance

Featuring a modular design, the telescopic led sphere is easy to install, and individual modules can be detached and replaced for simple upkeep.

05/

Customizable Motion Modes

A motion-control software system drives the sphere's expansion and retraction, and synchronizes on-screen content with the mechanical movement as needed.

Kinetic LED Sphere Display

1.5m Diameter kinetic LED Sphere Parameters

Mechanical Structure	Motor Type		Telescoping Speed	Telescoping Length		Motion Control	Indoor
Parameters	Servo Motor		100 mm/s	250 mm		Software
Model		P2.5			P2		Custom
Pixel Pitch (mm)		2.5			2		Custom
Diameter (m)		1.5m/2m/2.5m/3m			1.5m/2m/2.5m/3m		Custom
LED Type		SMD1515			SMD1515		SMD1515
Pixel Density (dots/m²)		160, 000			250, 000		Custom
Avg. Power (W/m²)		180			180		180
Max. Power (W/m²)		550			550		550
Refresh Rate (Hz)		3840			3840		3840
Input Voltage		AC 100–240 V, 50–60 Hz			AC 100–240 V, 50–60 Hz		AC 100–240 V, 50–60 Hz
Lifespan (hours)		100, 000			100, 000		100, 000

Software Control

Software Features

Clients can freely set the motion and speed of each telescopic arm - no programming required.
Using an all-in-one console or tablet, you can create multiple mode buttons; tapping a button plays different videos and triggers corresponding mechanical movements.
Modes can be switched freely.

Open the Mode Creation panel via the "Create Mode" button on the main interface. This button is available only when the "Mode Edit"button is highlighted.

Mode Creation Interface

Motorized LED Sphere Display
