Super light weight water proof led cabinet of only 13kgs, cabinet thickness is only 80cm.
Easy to installation and transportation(save labors and transit cost)
3 years warranty (Have front service / front maintenance for options) | |||||
| Model No. | P3.91 | P4.81 | P5.95 | P6.25 | P8.92 |
Pixel Pitch | 3.91mm | 4.81mm | 5.95mm | 6.25mm | 8.92mm |
LEDs | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
Module size(mm) | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
Panel Size ( L x W x H ) | 500x1,000x75mm | 500x1,000x75mm | 500x1,000x75mm | 500x1,000x75mm | 500x1,000x75mm |
Panel Weight ( Kgs) | 13 | 13 | 13 | 13 | 13 |
Pixel Matrix Per Panel | 64x64 | 52x52 | 42x42 | 40x40 | 28x28 |
Pixel Density /m2 | 65,025dots | 43,264 dots | 28,224 dots | 25,6000 dots | 12,544 dots |
Brightness | ≥5,500(cd/m2) | ≥5,500(cd/m2) | ≥5,500(cd/m2) | ≥5,500(cd/m2) | ≥5,500(cd/m2) |
Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Viewing Angle | 140°H and 140°v | 140°H and 140°v | 140°H and 140°v | 140°H and 140°v | 140°H and 140°v |
Refresh Rate | ≥1,920Hz | ≥1,920Hz | ≥1,920Hz | ≥1,920Hz | ≥1,920Hz |
Minimum viewing distance | 3.9m | 4.8m | 5.9m | 6.2m | 8.9m |
Scan Type | 1/16 | 1/13 | 1/7 | 1/10 | 1/7 |
Defects Rate | ≤0.0001 | ≤0.0001 | ≤0.0001 | ≤0.0001 | ≤0.0001 |
Lifetime | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
MTBF | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours |
Power Consumption (Max / Avg) | 800 / 250 w/m2 | 800 / 250 w/m2 | 800 / 250 w/m2 | 800 / 250 w/m2 | 800 / 250 w/m2 |
IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 |
Input Voltage (AC) | 110V / 240V | 110V / 240V | 110V / 240V | 110V / 240V | 110V / 240V |
Operation systems | Win8/Win7/XP | Win8/Win7/XP | Win8/Win7/XP | Win8/Win7/XP | Win8/Win7/XP |
Data transmission | CAT5/6 cable transmission distance 120m/max Multi-mode fiber optics transmission distance 500m/max Single-mode optic fiber transmission distance 10km/max | ||||
High brightness of ≥ 5500cd/m2 (sunlight readable) for outdoor application
Extreme Precision

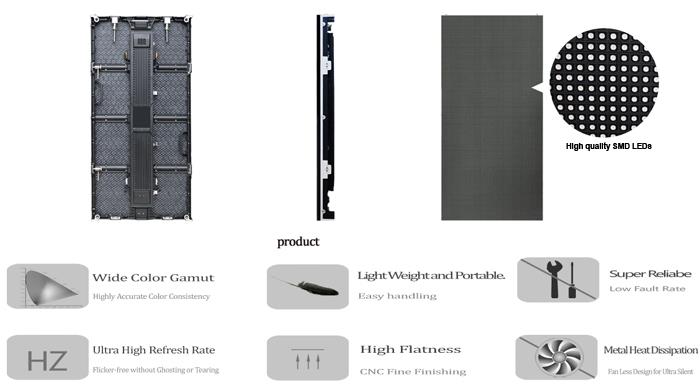

Die casting aluminum led cabinet, each cabinet tolerance is only 0.01mm. cabinet splicing structure with positioning function, use alignment pin and alignment hole design, very easy to connect and install. Whole led display flatness and seam is less than 0.05mm. Humannization handlebar make you more easy to move the cabinet
Wide viewing angle of 140° in both horizontal and vertical
