If you are interested in our litestar l-dna series 360°roating mechanical outdoor & indoor led display for creative digital advertisement, creative stage design & creative events application, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.
360° Holographic Phantom

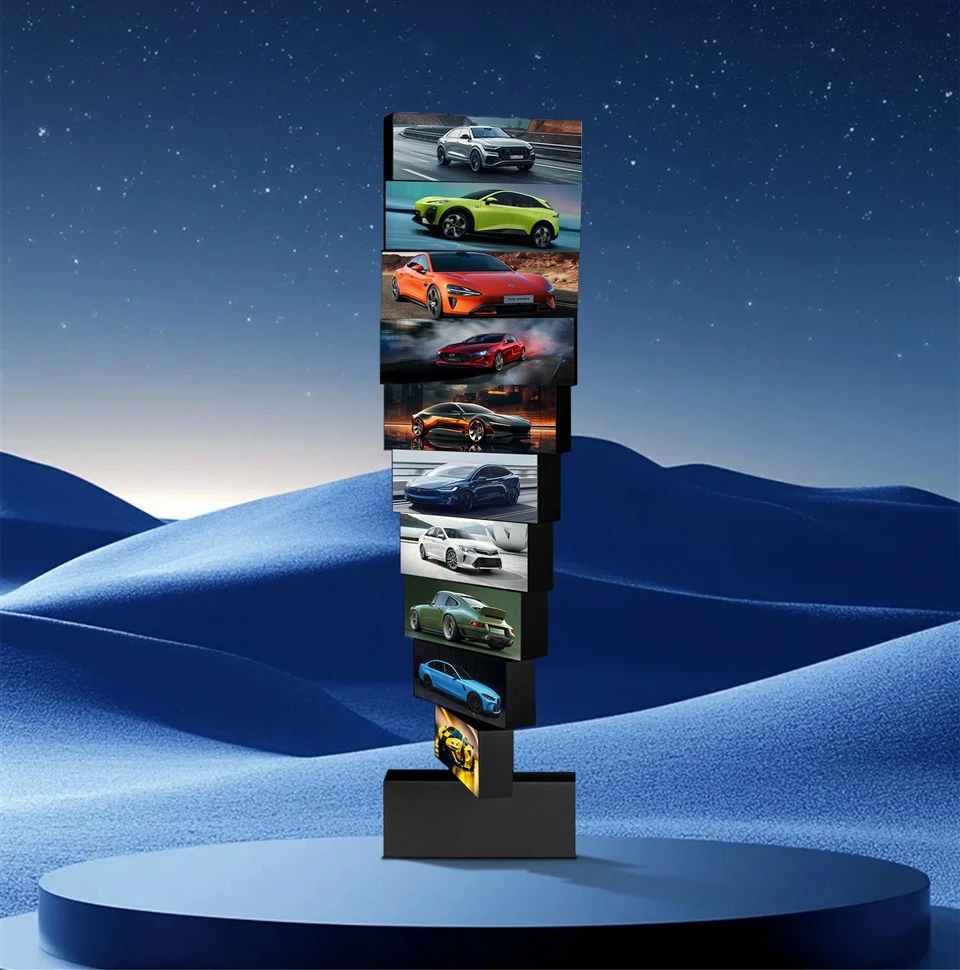

DNA Rotating Mechanical LED Screen
Immersive Visual Experience
Technical Specifications
|
Product Layers |
Single-sided Display Size |
Product Model |
Product Dimensions |
Base Dimensions |
Application Environment |
Refresh Rate |
Screen Brightness |
|
6 Layers |
750*250mm |
P1.5/P1.9/P2.5 |
750*460*1830mm |
750*460*300mm |
Indoor/Outdoor |
>=3840Hz |
800-5000nits |
|
7 Layers |
750*250mm |
P1.5/P1.9/P2.5 |
750*460*2080mm |
750*460*300mm |
Indoor/Outdoor |
>=3840Hz |
800-5000nits |
|
8 Layers |
750*250mm |
P1.5/P1.9/P2.5 |
750*460*2330mm |
750*460*300mm |
Indoor/Outdoor |
>=3840Hz |
800-5000nits |
|
9 Layers |
750*250mm |
P1.5/P1.9/P2.5 |
750*460*2600mm |
750*460*300mm |
Indoor/Outdoor |
>=3840Hz |
800-5000nits |
|
10 Layers |
750*250mm |
P1.5/P1.9/P2.5 |
750*460*2860mm |
750*460*300mm |
Indoor/Outdoor |
>=3840Hz |
800-5000nits |
Additional Specifications:
• Rotation Mode: Optional (different rotation modes can be selected according to image requirements)
• Rotation Speed: Adjustable (operating speed can be adjusted according to user or image requirements)
• Equipment Installation: Equipment comes with base chassis, no need for foundation installation

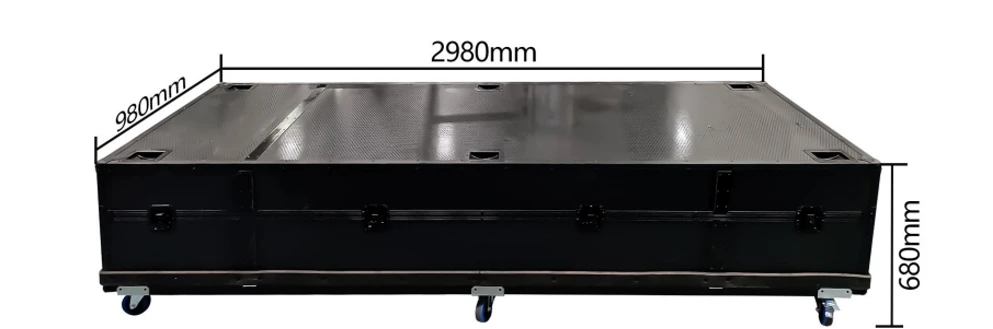

10-Layer Rotating Screen Flight Case Packaging Dimensions
Rotating Screen Flight Case Packaging Parameters:
|
Product Layers |
Flight Case Dimensions |
Net Weight (KG) |
Gross Weight (KG) |
|
6 Layers |
1950*950*680mm |
149.5 |
231.5 |
|
7 Layers |
2230*950*690mm |
169 |
257 |
|
8 Layers |
2450*950*690mm |
198.5 |
291 |
|
10 Layers |
2980*980*680mm |
212.5 |
317 |

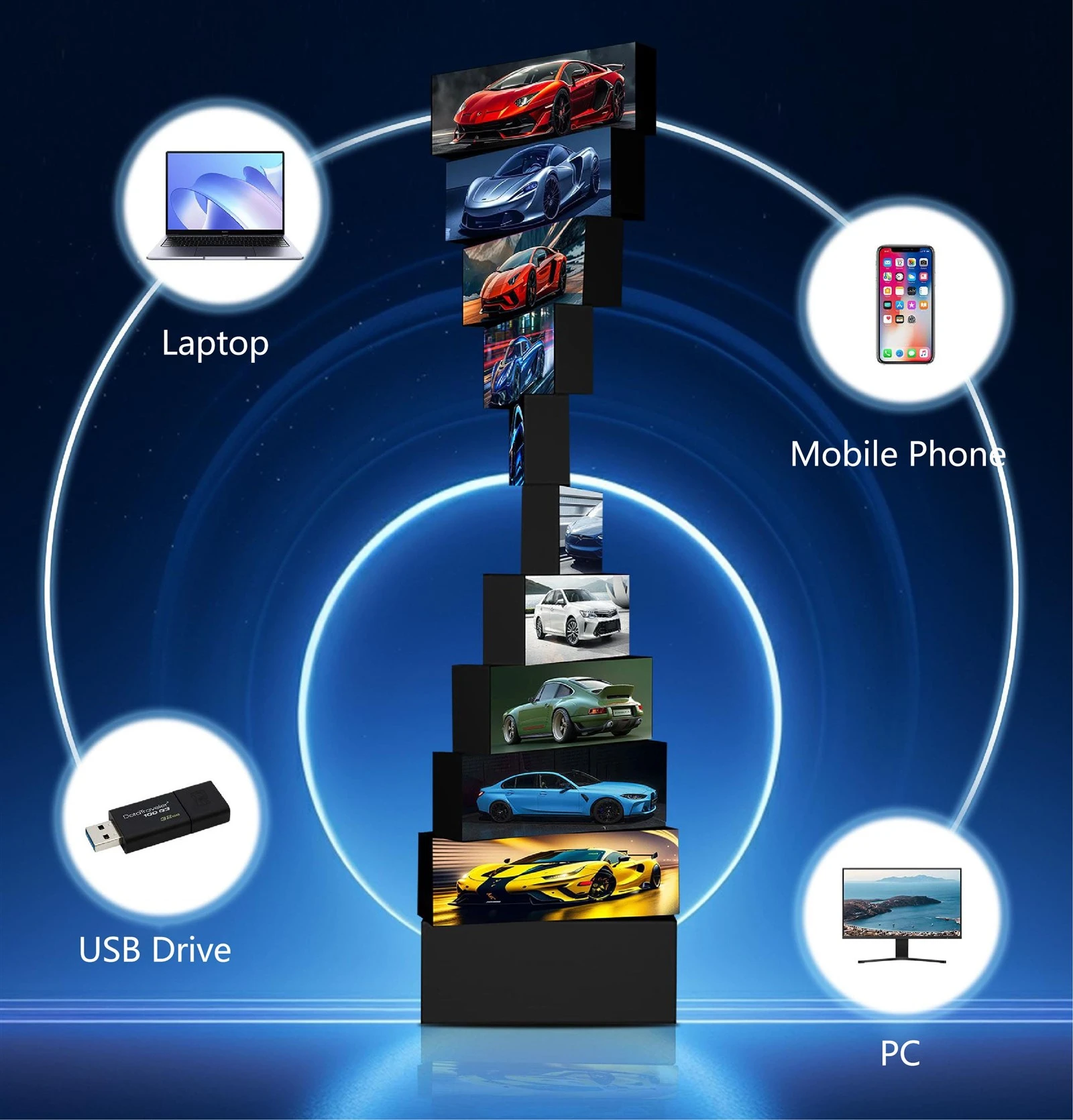

Intelligent Control System
Supports wireless control and scheduled playback functions, easy to operate, and enables synchronous display and content management of multiple screens through remote control.

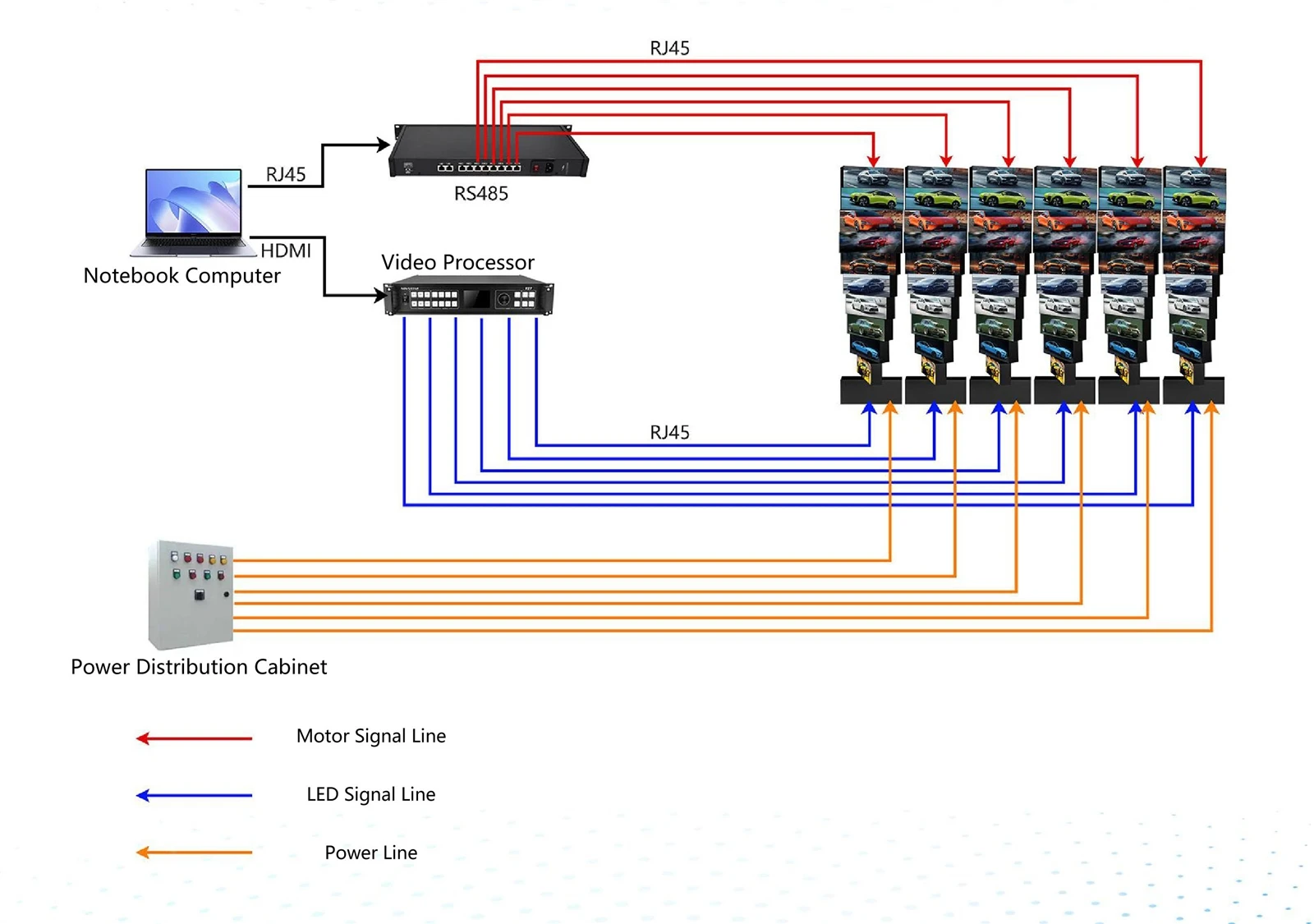

DNA Rotating Screen System Connection Diagram
Six Core Features
An innovative technology and artistic display integrated high-end advertising display device.
High Resolution Display
360-Degree Rotation Function
Intelligent Control System
Wide Range of Applications
Energy-Saving Design
High-Quality Materials
Ten-Layer Rotating Design
Precision mechanical drive with 10 layers of independently rotating screen bodies, creating naked-eye 3D visual effects, breaking through traditional flat display limitations.
Through precise mechanical control, screens can freely switch between different angles, making displayed content richer and colorful, attracting audience attention.
Product Package information

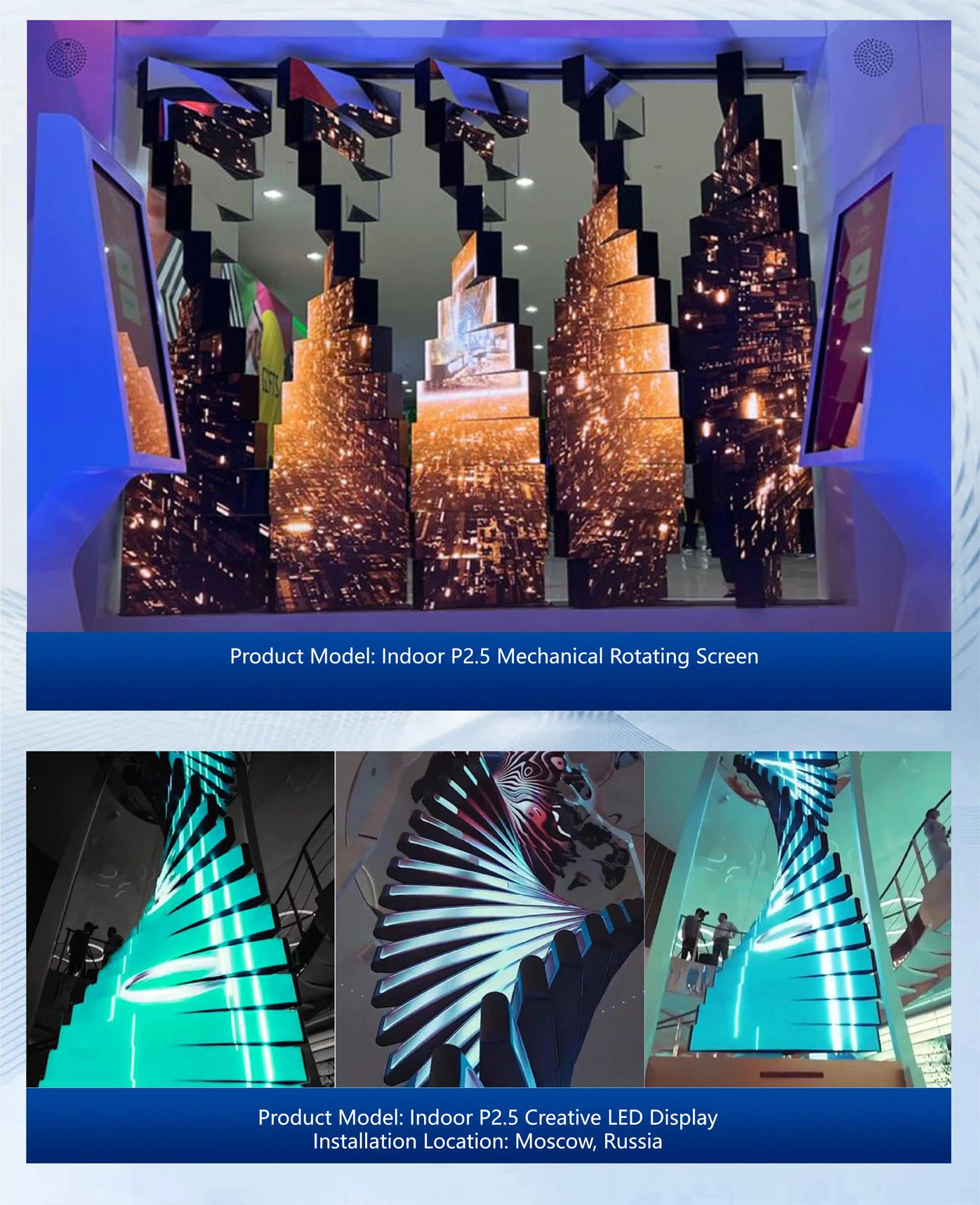

Showcase
Let space flow, let creativity upgrade!
