If you are interested in our litestar ltf e series outdoor & indoor high brightness transparent led display for window display and led glass wall application, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.

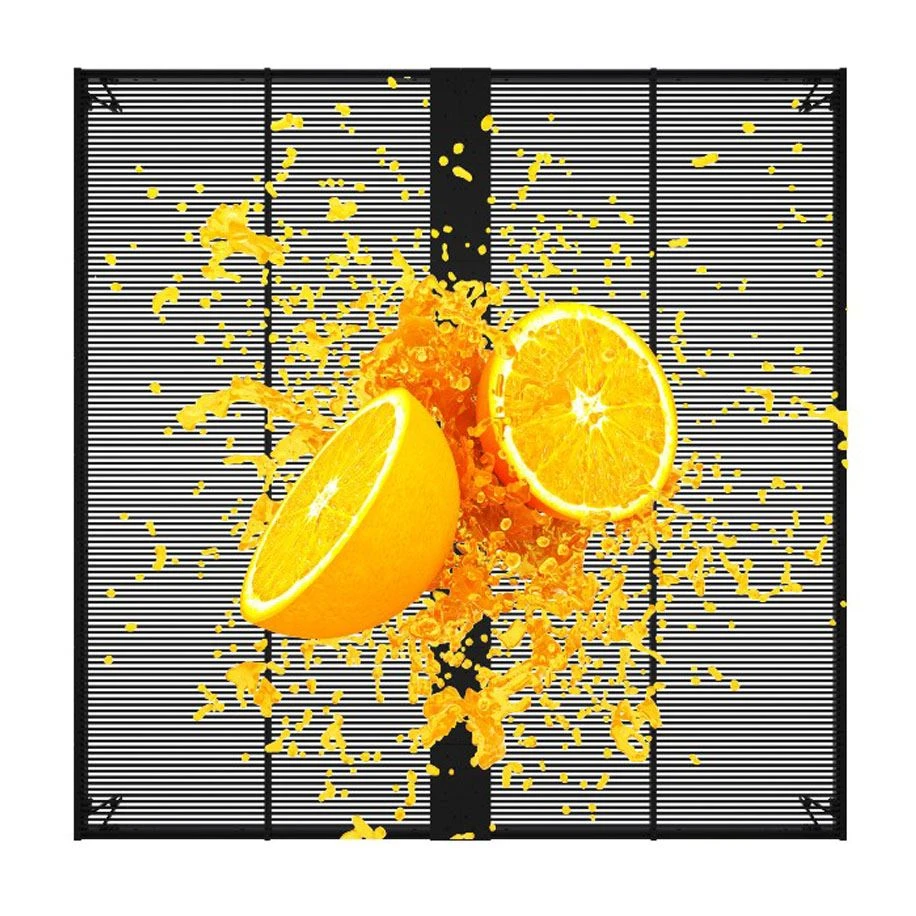

LTF Series
Outdoor & Indoor Transparent
LED Display
1000-5000nits brightness adjustment / IP30 & IP65 options · Light weight Aluminum Cabinet
- 55-75% Transparency
- H140°/V140° wide viewing agle
- Front & rear Maintenance
- High contrast & high brightness

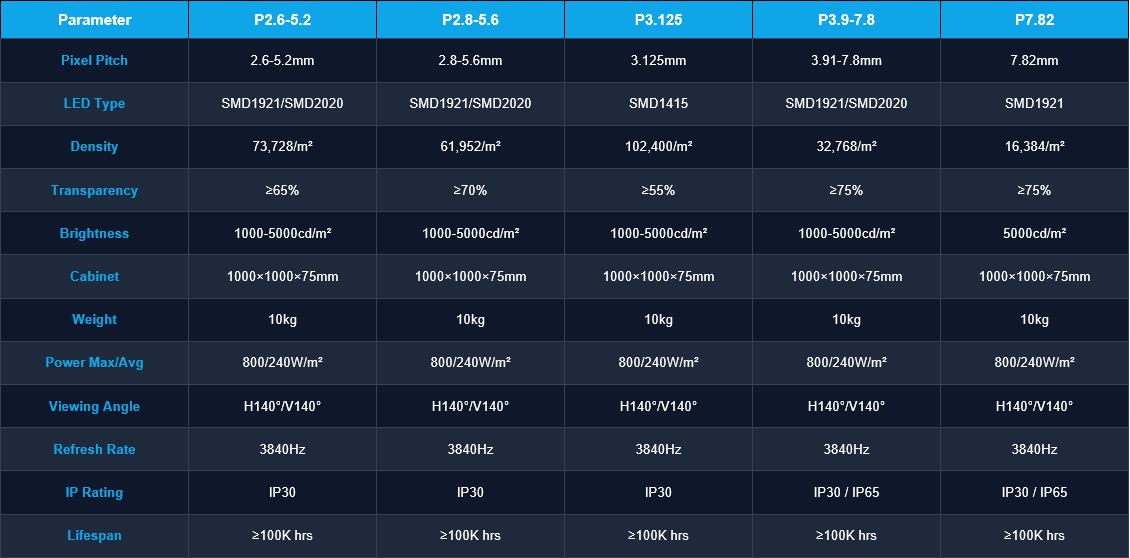

Technical Parameters
High Brightness & High Transparency
01
5000cd/m² High Brightness
Clear visibility through glass even in daylight. Good for led window display application
02
55-75% True Transparency
Physical PCB opening ratio, not software simulation. Glass remains visible while displaying vivid content.
03
IP30 for Indoor Rated & IP65 for outdoor Rated
IP30 design for indoor installation behind glass. Suitable for curtain walls, atriums, and retail windows. I65 design for installation outside
Two Dimensions Cabinets
Smart Control
Mobile App Control
Control screens remotely via smartphone app - anytime, anywhere
Cloud Management
Cloud-based remote control for multi-location screen management
Auto On/Off
Software scheduled automatic screen on/off timing
Compatible: Novastar / Colorlight / Mosaic
Smart Control Screen | Mobile App Control Screen
Front & Rear Maintenance
01
Front Module Access
Quick-release modules accessible from the front without removing the cabinet.
02
Back Component Service
Receiving card and power supply maintained from the back panel separately.
03
Hot-Swap Replacement
Single module replacement without shutting down the entire display.
04
Modular Structure
Standard modules ensure fast servicing with minimal downtime.
Core Technology
SMD1921 with On-board Driver
Driver IC integrated into LED bead, reducing external components for higher reliability.
16bit Grayscale
65,536 gray levels for smooth, natural color transitions without banding.
3840Hz Refresh Rate
High refresh eliminates scanning lines when filmed. Broadcast-grade quality.
Constant Current Drive
Static drive mode ensures stable, flicker-free performance with uniform brightness.
Application Scenarios

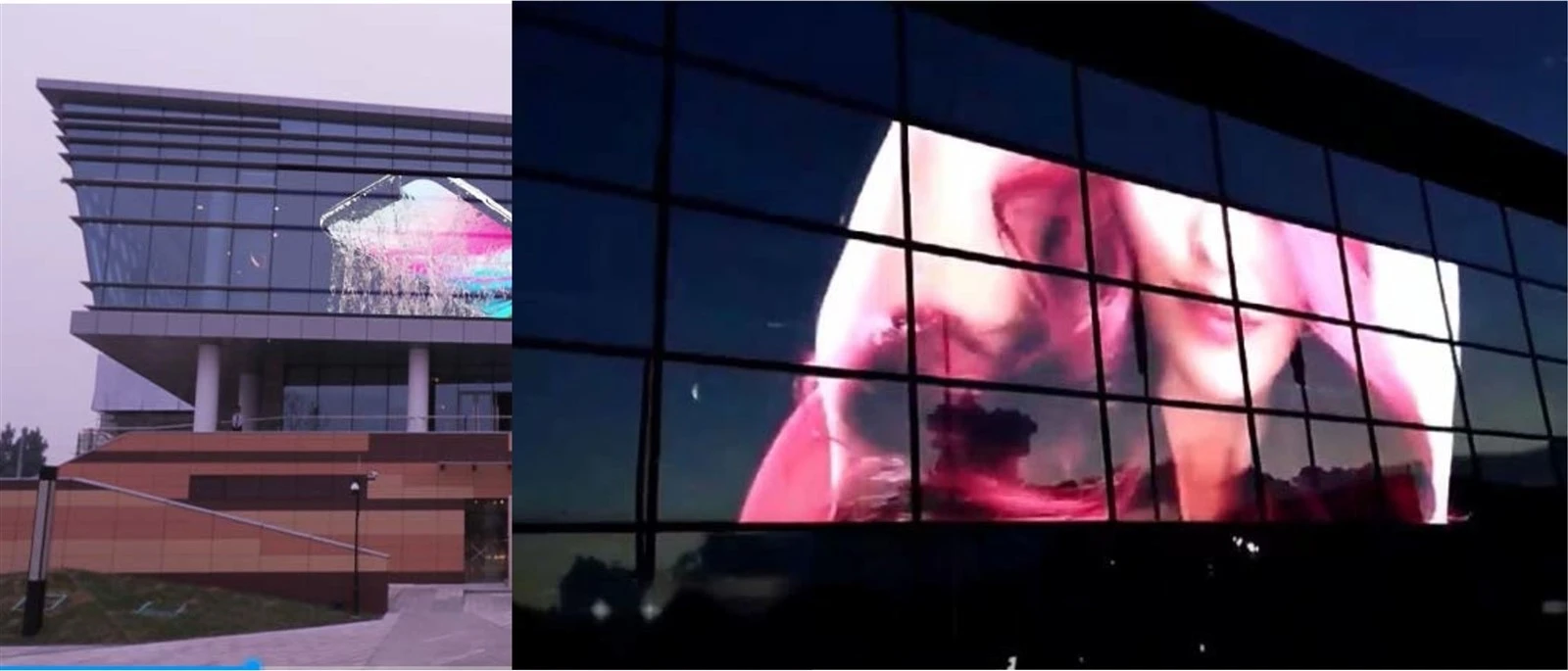

commercial real estate
Glass curtain walls incommercial streets and shopping centers
hysical Business
Chain store window advertisements

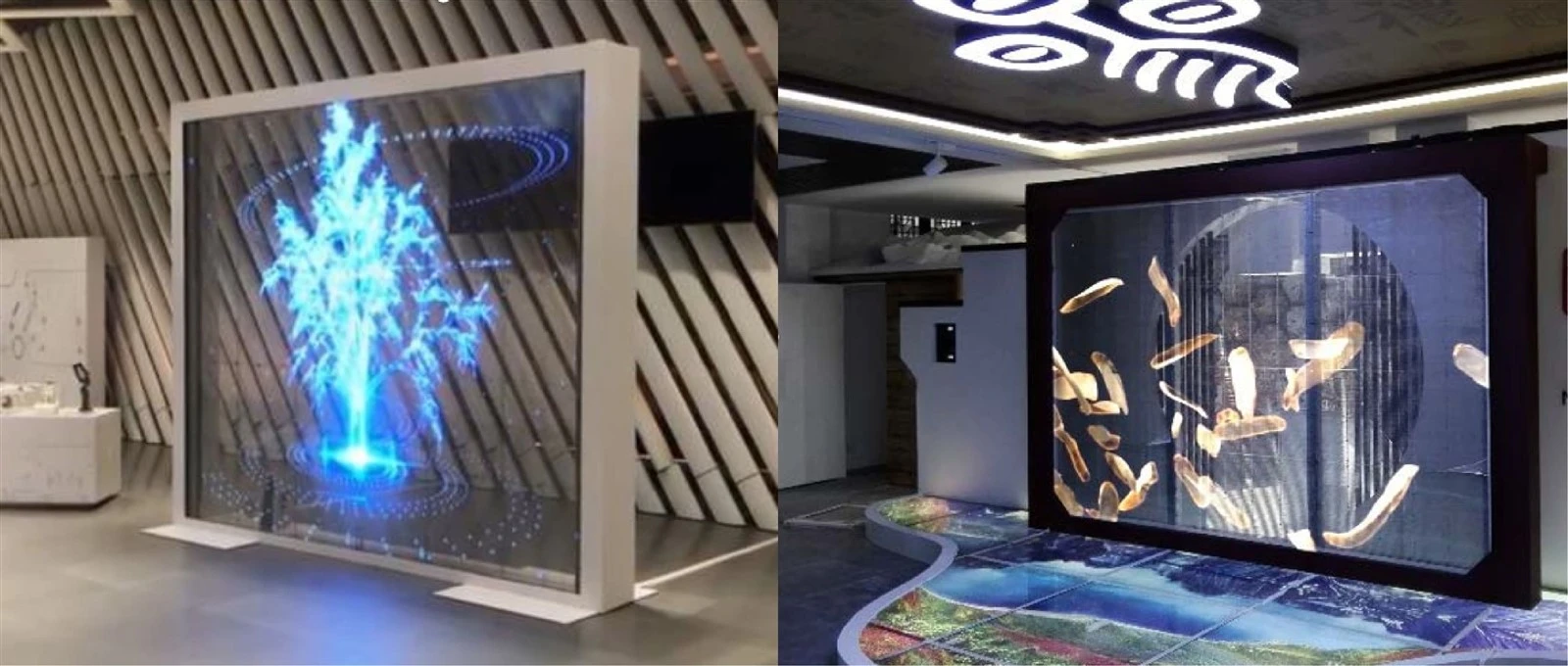

Advertising Media
Various commercial LED screen advertising spaces i
LED equipment leasing
Stage design, exhibitions, and displays
Products Description
Turn glass surfaces into higher-impact advertising space
FAQ
Q1 What does IP30 & IP65 mean?
P30 is for indoor installation, protects against solid objects ≥2.5mm, no water protection. Indoor only. IP65 can be for installation outside, it is water proof
Q2 Can it be viewed from outside?
Yes. 5000cd/m² brightness ensures clear visibility through glass in daylight.
Q3 What is the cabinet material?
An aluminum profile. Lightweight, durable, excellent heat dissipation.
Q4 How is maintenance done?
Module front maintenance. Receiving card and power serviced from back.
Q5 What control systems?
Novastar, Colorlight, Mosaic. Mobile APP and cloud remote available.
Q6 What certifications?
CE, RoHS, FCC
