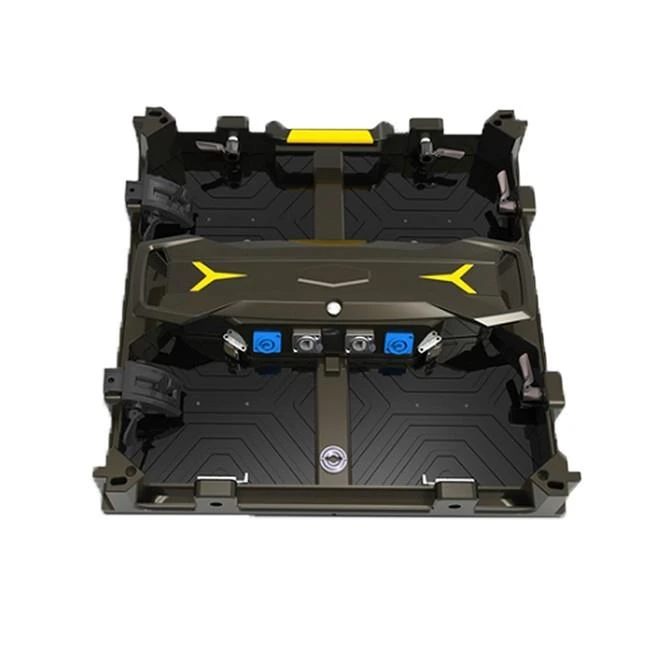

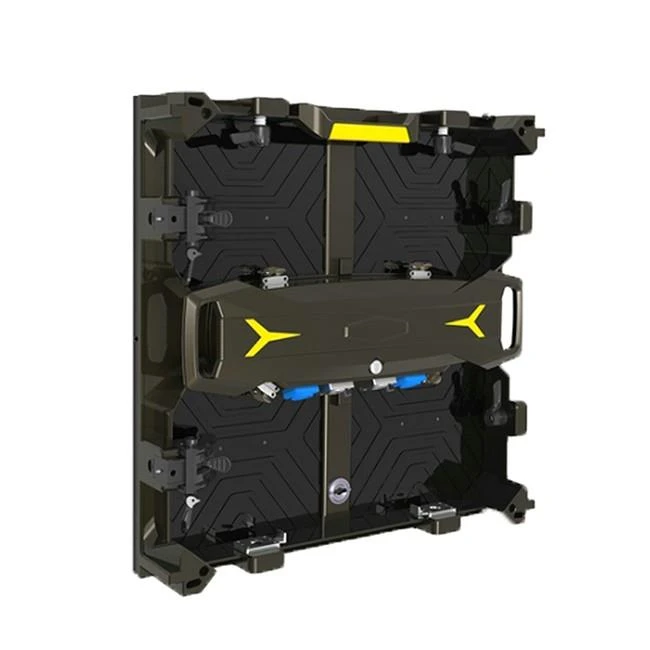

500x500mm outdoor Die-casting LDR Series
| Pixel Pitch(mm) | P2.97 | P3.91 | P4.81 | P5.95 | P6.25 |
| Pixel Density(dot/m2) | 112,896 | 65,536 | 43,264 | 28,224 | 25,600 |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD3535 |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500*72 | 500*500*72 | 500*500*72 | 500*500*72 | 500*500*72 |
| Cabinet Weight(kg) | 7.5kgs | 7.5kgs | 7.5kgs | 7.5kgs | 7.5kgs |
| Cabinet Resolution(px*px) | 168*168 | 128*128 | 104*104 | 84*84 | 80*80 |
| Maintenance way | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Horizontal/Vertical Viewing Angle | 140 °/140 ° | 140 °/140 ° | 140 °/140 ° | 140 °/140 ° | 140 °/140 ° |
| Brightness(cd/m2) | 6,000nits | 6,500/5,500nits | 6,500/5,500nits | 5,500nits | 6,500nits |
| Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate | 3,840hz | 3,840hz | 3,840hz | 3,840hz | 3,840hz |
| Scan Way | 1/14 | 1/8 &1/16 | 1/7&1/13 | 1/8 | 1/5 |
| Input Voltage(AC) | 100-240V | 100-240V | 100-240V | 100-240V | 100-240V |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Life Span | >100,000hours | >100,000hours | >100,000hours | >100,000hours | >100,000hours |
| MTBF | >10,000hours | >10,000hours | >10,000hours | >10,000hours | >10,000hours |

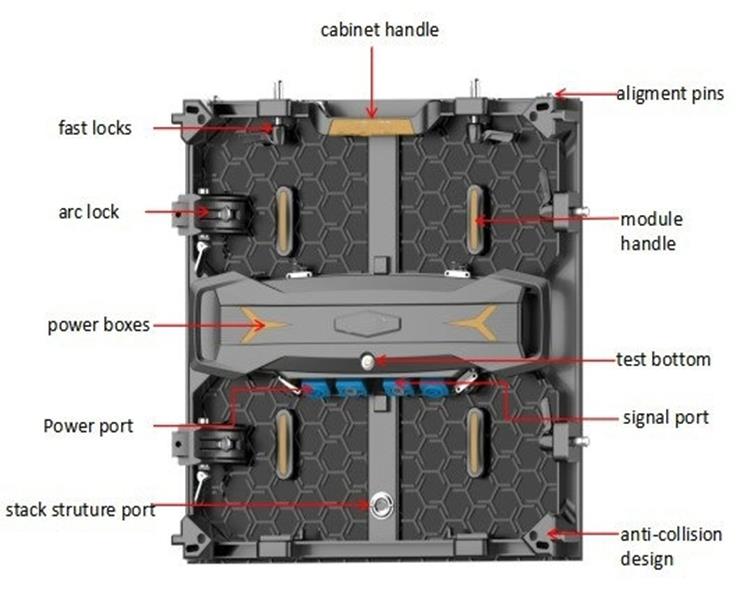

Ultra Light Weight and Thin Die casting Aluminum Cabinet

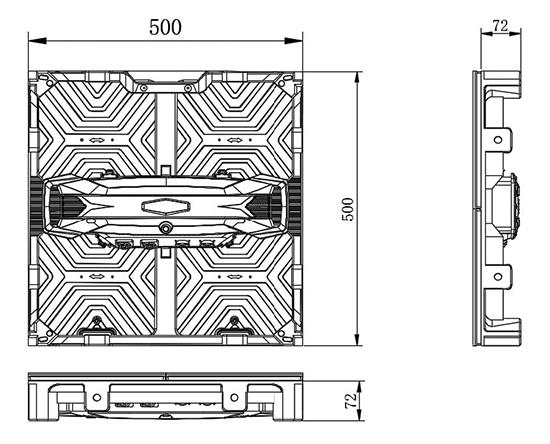

 | Cabinet thickness include module is only 72mm |
Cabinet weight is only 7.5kgs
|  |

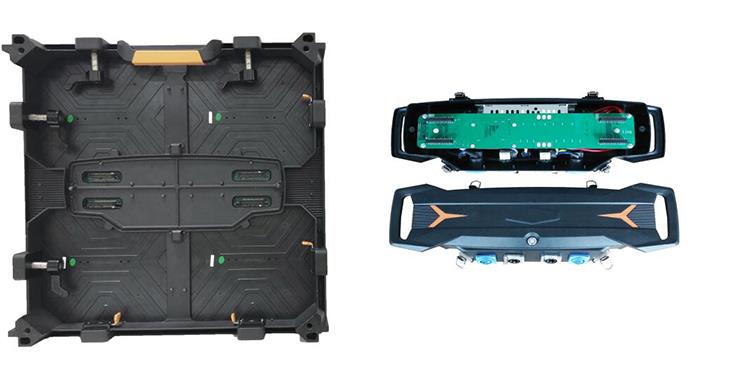

HUB design for signal and power. Cable free to reduce failure rate

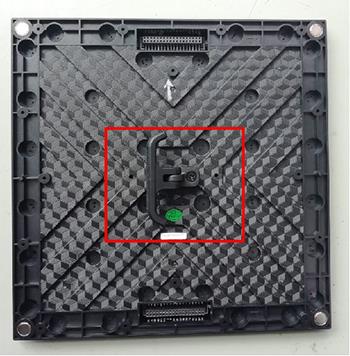

 | Module handle design, safe to take out module from rear side |

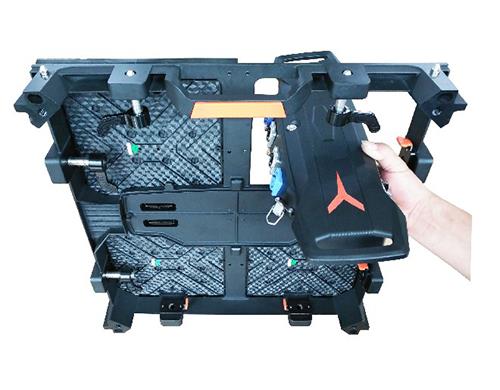

 | Support to maintain the power box from front |

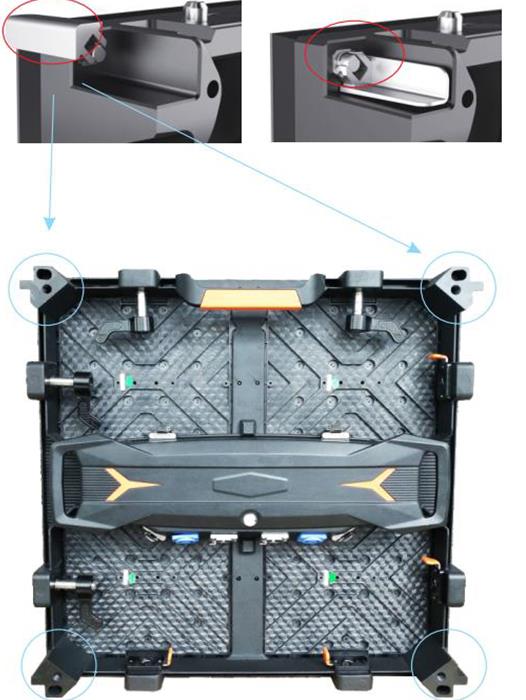

 | There are lamp guard flips at the four corners of cabinet to protect the modules corners and led lamps during transit. |

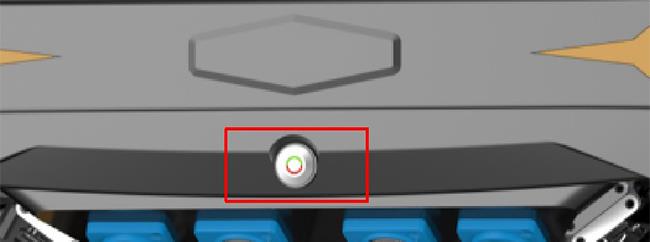

Test button & Indicator lamp for power and signal status

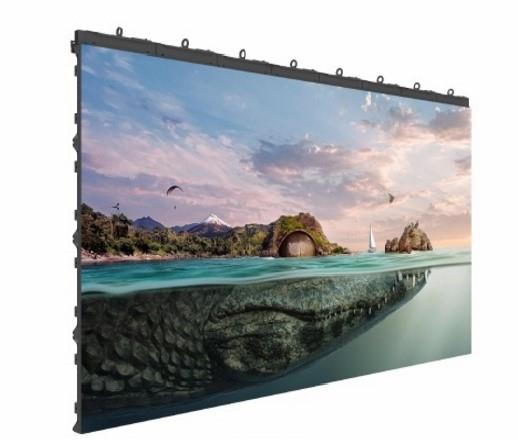

Flat splicing. two sets of fast locks for tighter assemble with no gap |  |
Curve splicing for convex (max 10°) and concave (max 10°)
|  |
 |
Both hanging and ground stacking installation

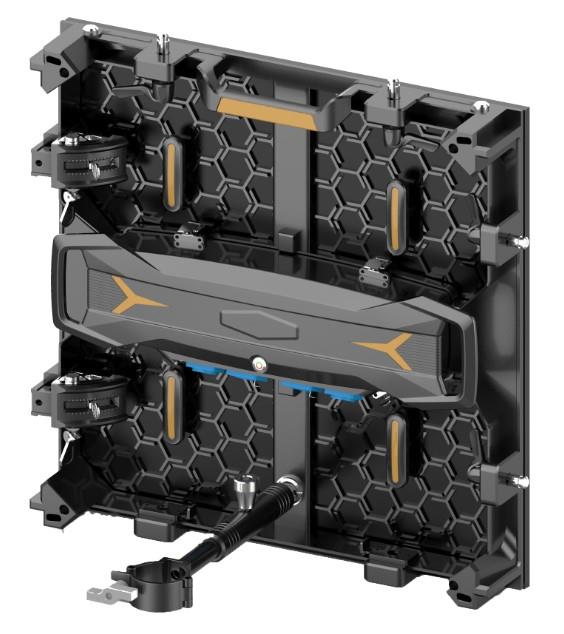

 | port for ground stacking structure, make your installation easier and faster
|

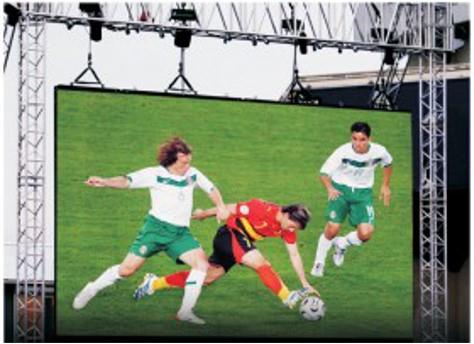

Provide with hanging bar to hang from truss
|
|
  | 160° super wide viewing angle |
clear picture with sharp viewing angle |   |
High refresh frequency ≥1920hz makes the display with no flickers when take photos |   |
