High Brightness Front Serviceable Transparent Mesh LED Display for Mounted Behind The Glass Wall

High Brightness Front Serviceable Transparent Mesh LED Display for Mounted Behind The Glass Wall

High brightness front serviceable transparent LED display with light weight aluminum cabinet, It is perfect for wall mounted LED display under glass. It is provide solution for shopping mall, glass building, Luxury stores, events, stages etc Perfect for Glass wall mounted transparent...
Send Inquiry
Description

If you are interested in our high brightness front serviceable transparent mesh led display for mounted behind the glass wall, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.

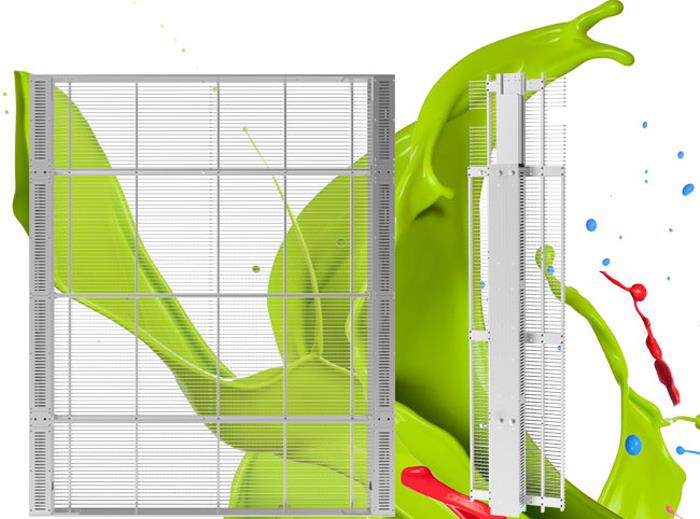

High brightness front serviceable transparent LED display with light weight aluminum cabinet, It is perfect for wall mounted LED display under glass.



It is provide solution for shopping mall, glass building, Luxury stores, events, stages etc



3 years   warranty

Model No.

P5-7 P6-8 P8 P10 P12 P16

Pixel Pitch

H-5mm ; V-7mm H-6mm ; V-8mm 8mm 10mm 12mm 16mm

Strip Length

640mmx320mm 384mmx384mm 512mmx512mm 480mmx480mm 576mmx384mm 512mmx512mm

Panel Size

( L x W x H)

960*896*133mm 1152*1024*133mm 1024*1024*133mm 960*1280*133mm 960*1536*133mm

1024*2048*133mm

Panel Weight

( Kgs)

15 15 13 12 12

10

Pixel Density /m2

28,571 dots 20,834 dots 15,625 dots

10,000 dots

6,944 dots

3,906 dots

Pixel Matrix Per Panel

192x192 192x192 160x160 144x144 128x128 96x96

Brightness

5,000(cd/m2) 5,000(cd/m2) 5,000(cd/m2) 5,000(cd/m2) 5,000(cd/m2) 5,000(cd/m2)

Colors

281 trillion 281 trillion 281 trilion 281 trillion 281 trillion 281 trillion

Viewing Angle

160°H and 160°v 160°H and 160°v 160°H and 160°v 160°H and 160°v 160°H and 160°v 160°H and 160°v

Refresh Rate

≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz

Minimum viewing distance

5m  6m 8m  10m 15m  16m

Transparency

62% 68% 70% 76% 82% 88%

Defects

Rate

≤0.0001 ≤0.0001 ≤0.0001 ≤0.0001 ≤0.0001 ≤0.000

Lifetime

100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours

MTBF

>10,000 hours >10,000 hours >10,000 hours >10,000 hours >10,000 hours >10,000 hours

Power Consumption (Max / Avg)

800 / 300w/m2 800 / 300w/m2 800 / 300w/m2 800 / 300w/m2 800 / 300w/m2 800 / 300w/m2

IP Rate

IP31 IP31 IP31 IP31 IP31 IP31

Input Voltage (AC)

110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V

Lifetime

100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours

Operation

systems

Win8/Win7/XP Win8/Win7/XP Win8/Win7/XP Win8/Win7/XP Win8/Win7/XP Win8/Win7/XP

  Data

transmission

distance

CAT5/6 cable transmission distance 120m/max

Multi-mode fiber optics transmission distance 500m/max Single-mode optic fiber transmission distance 10km/max






Perfect for Glass Wall

Glass wall mounted transparent mesh LED display;
Match with glass perfectly;
High transparency; High brightness.

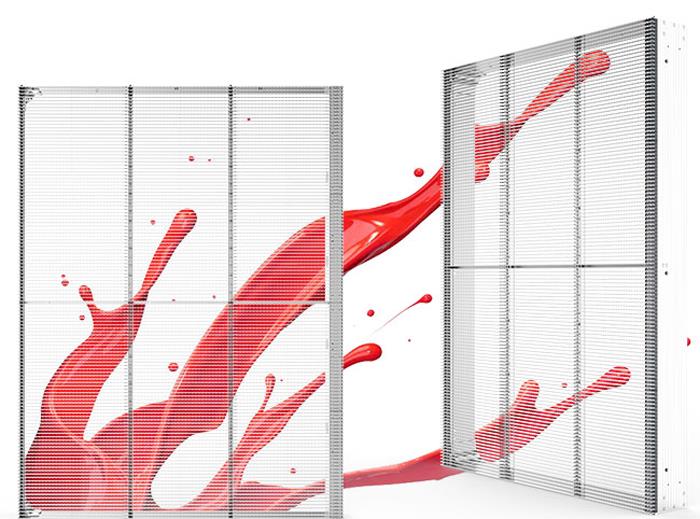

High Transparency

side-lighting technology,
its 75% high transparency and some types can reach 90% -
it will have no any effect on indoor "day lighting"!






Customized Size

Transparent led Panel size can be customized

according to the building glass size.

It is mounted behind glass wall, but display towards outside.






Easy front Maintenance

It supports front maintenance, individual strip design with hot plug.



Project for references

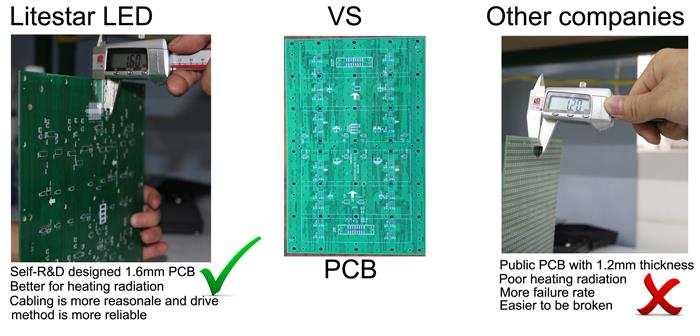

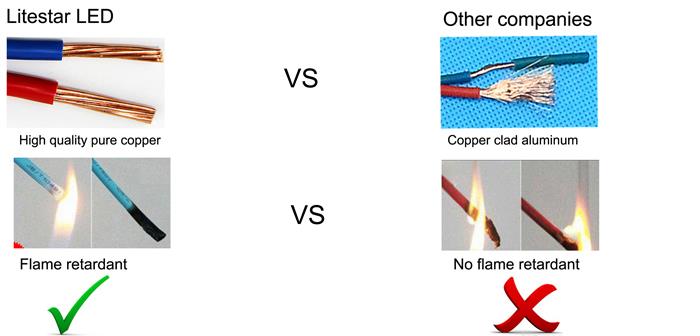

LITESTAR LED main material advantages.
