LITESTAR LIFD Series Indoor P4.68 Stairs LED Floor Screen
Technical Specifications 1
|
Parameters |
||
|---|---|---|
|
Project |
Parameters |
|
|
Specification |
Pixel composition |
SMD LED 1R, 1G, 1B |
|
Pixel pitch |
4.68 (W) × 4.68 (H) mm |
|
|
Module resolution(W×H) |
64×32 |
|
|
Module size(mm) |
300 (W) × 150 (H) × 18 (D) mm |
|
|
Module weight |
2.1 kg |
|
|
Cabinet size(mm) |
Top view: 1200 (W) × 300 (H) × 88 (D) mm |
|
|
Side view: 1200 (W) × 150 (H) × 88 (D) mm |
||
|
Weight(kg/Cabinet; kg/m2) |
30; 55 |
|
|
|
Weight(kg/Floor support; kg/m2) |
2; 12 |
|
Outer packaging + cabinet weight (kg) |
150 kg (6-in-1 carton) |
|
|
Outer Packaging (W × H × D) |
6-in-1 carton: 1270 × 680 × 480 mm (W × H × D) |
|
|
Pixel density(dot/m2) |
45796 |
|
|
Protection level |
Indoor (Front IP65, Back IP43) |
|
|
Cabinet flatness(mm) |
≤ 1 mm |
|
|
White balance brightness(nits) |
Indoor ≥ 2000 nits |
|
|
CCT(K) |
3200~9300 K adjustable |
|
|
Horizontal Viewing Angle (°) |
120 |
|
|
Center distance deviation of luminous point |
<3% |
|
|
Brightness uniformity |
≥97% |
|
|
Chromaticity uniformity |
within ±0.003 Cx, Cy |
|
|
Maximum contrast |
6000:1 |
|
|
Electrical parameters |
Power consumption(A/Single module) |
DC 6~7 A |
|
Peak power consumption(W/Cabinet; W/m2) |
400 ; 1100 |
|
|
Average power consumption(W/cabinet; W/m2) |
240 ; 666 |
|
|
Power requirements |
AC220V(50-60Hz) |
|
|
Processing performance |
Pixel sharing technology |
Yes |
|
Drive Mode |
Constant current drive |
|
|
Scan Mode |
1/8 Scan |
|
|
Frame change frequency(Hz) |
50 & 60 Hz |
|
|
Refresh rate(Hz)@ 60 Hz frame rate signal source |
≥3840 |
|
|
|
Lifespan(hrs) |
100,000 |
|
Working temperature(℃) |
-20 ~ 55 |
|
|
Storage temperature(℃) |
-30 ~ 60 |
|
|
Humidity (RH), no condensation |
10 - 90% |
|
|
Storage humidity (RH), no condensation |
10 - 95% |
|
|
Screen thickness( mm) |
Module + cabinet: 80 mm Screen + floor support: 150~170 mm (adjustable / customized) |
|
|
Defective ratio |
≤ 4/100,000 |
|
|
Unit module splicing gap(mm) |
Uniform, ≤ 2 mm |
|
|
Best Viewing Distance (m) |
3~15 m |
|
|
Viewing Angle (°) |
Horizontal > 120° |
|
|
Surface flatness(mm) |
Max tolerance ≤ 1 mm |
|
|
Screen surface color |
95% (white / tea-colored surface) |
|
Brightness (cd/㎡) |
2000~2500 cd/㎡ |
|
|
Circuit layout |
Light-driven integrated SMD technology, evenly distributed light-emitting pixels, suspended circuit board design, no stress, reasonable layout, standard and beautiful wiring, stable and reliable |
|
|
Load Bearing Capacity |
2 tons/㎡ |
|
|
1545 N (single point) |
||
|
Friction coefficient |
Static μs = 0.79 |
|
|
Dynamic μd = 0.71 |

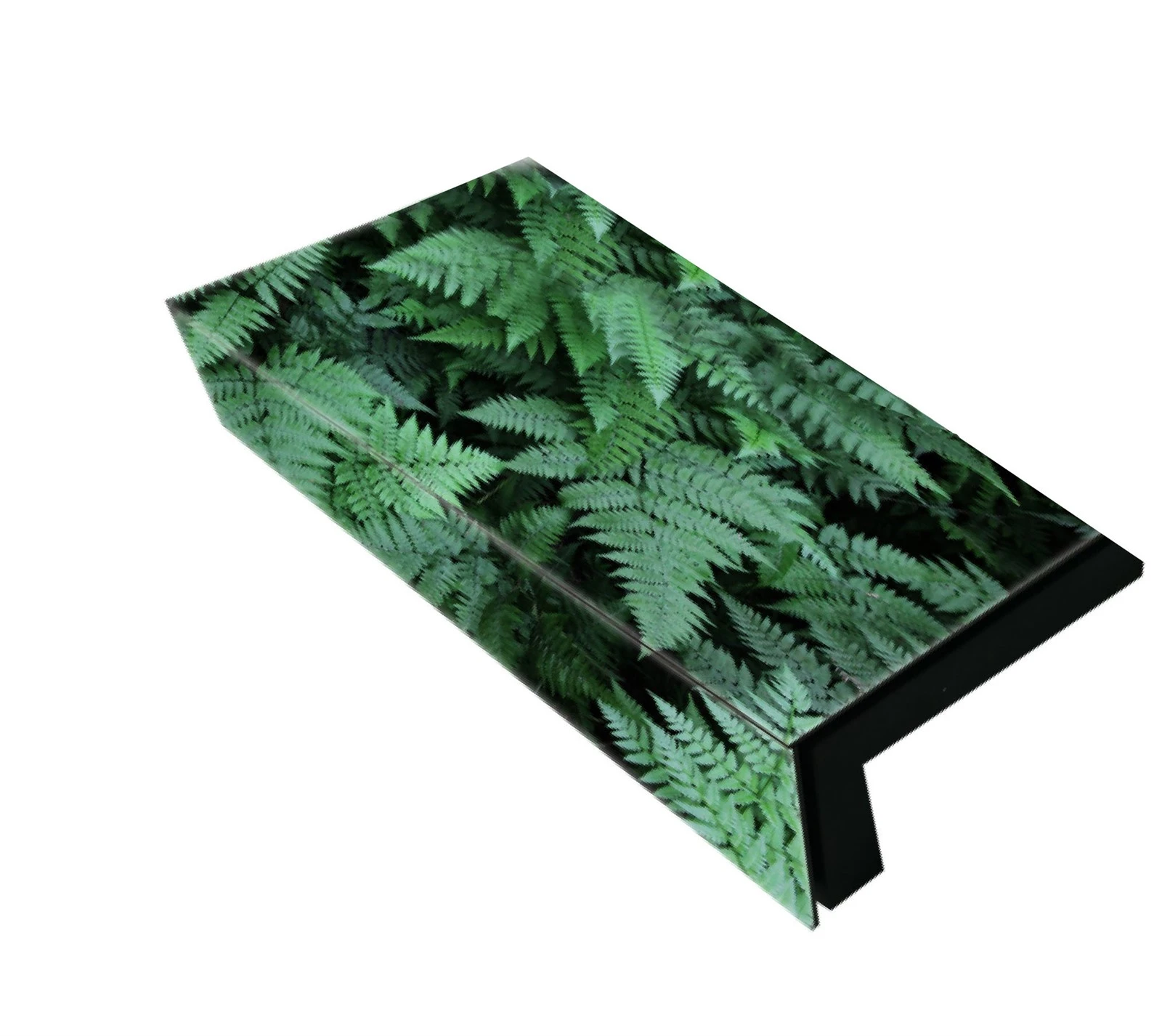

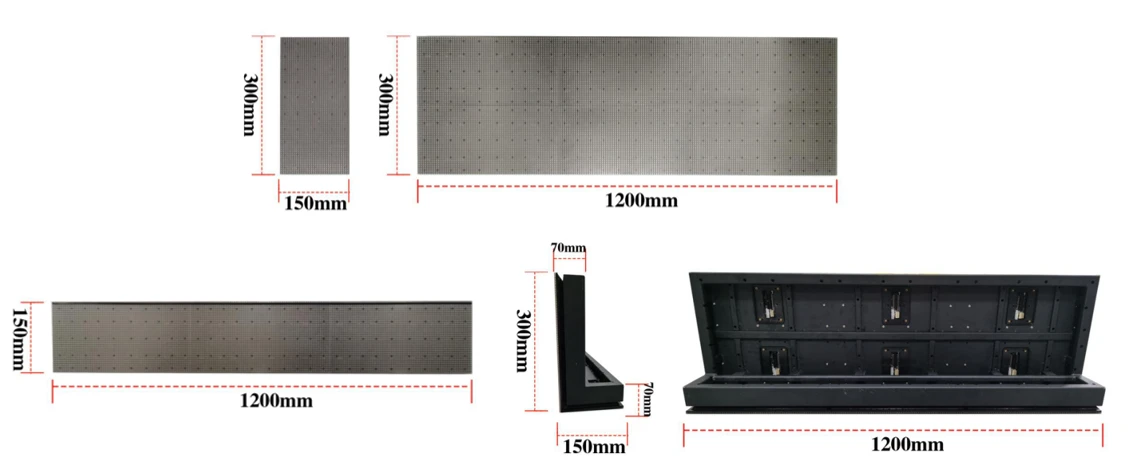

Stairs LED Screen Cabinet (Unit: mm)
1200 × 450 mm Iron Cabinet (Top 300 mm + Riser 150 mm)

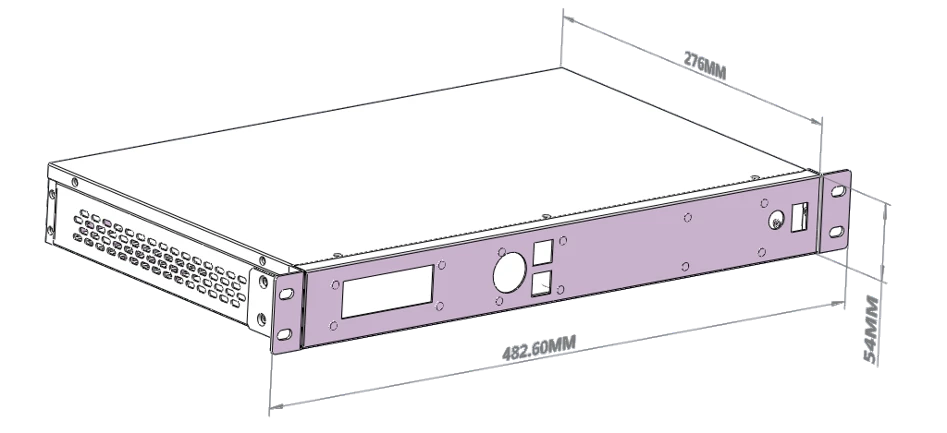

Interactive Sending Box (Unit: mm)
Interactive sending box enables real-time footstep tracking - light waves and custom visuals follow every step.

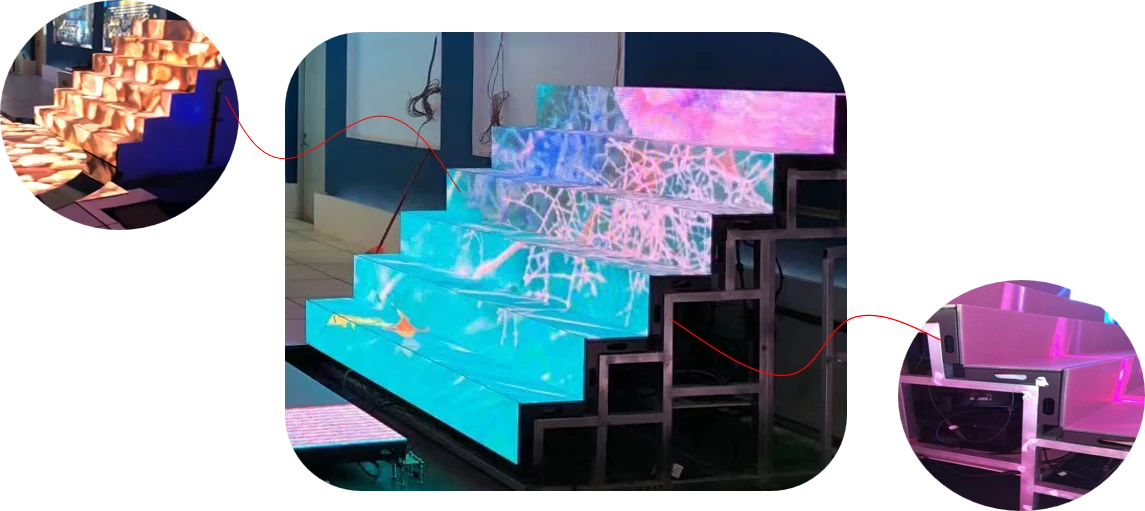

Real Product Images
Real shots of the LIFD P4.68 stairs LED floor screen - high-strength walkable surface, uniform brightness, vivid visuals.

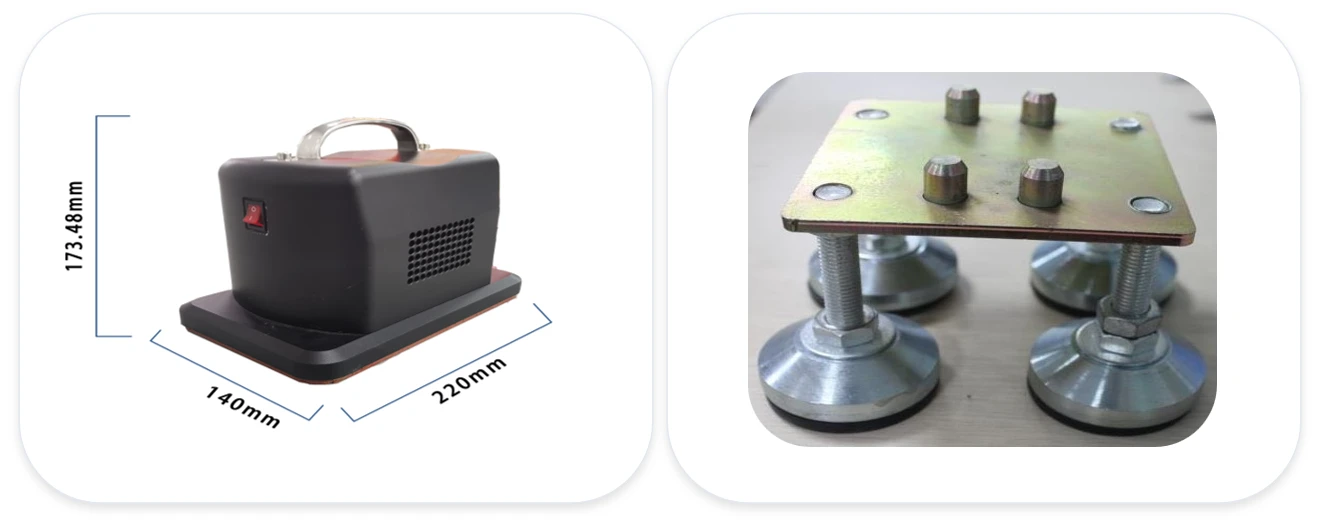

Maintenance Tools & LED Floor screen Support Dimensions (Unit: mm)
Real Product & Packaging

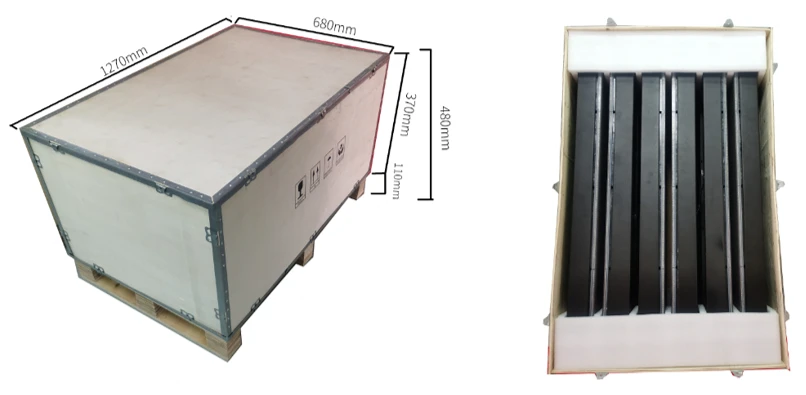

Stairs led floor display Package
6-in-1 outer carton: 1270 × 680 × 480 mm, 150 kg. Iron cabinet with protective packing for safe transit.
LED stairs Floor Display Support Installation Guide
Quick installation: level-adjustable supports fix each cabinet onto the stair structure - fast alignment, load-safe to 2 tons/m².
