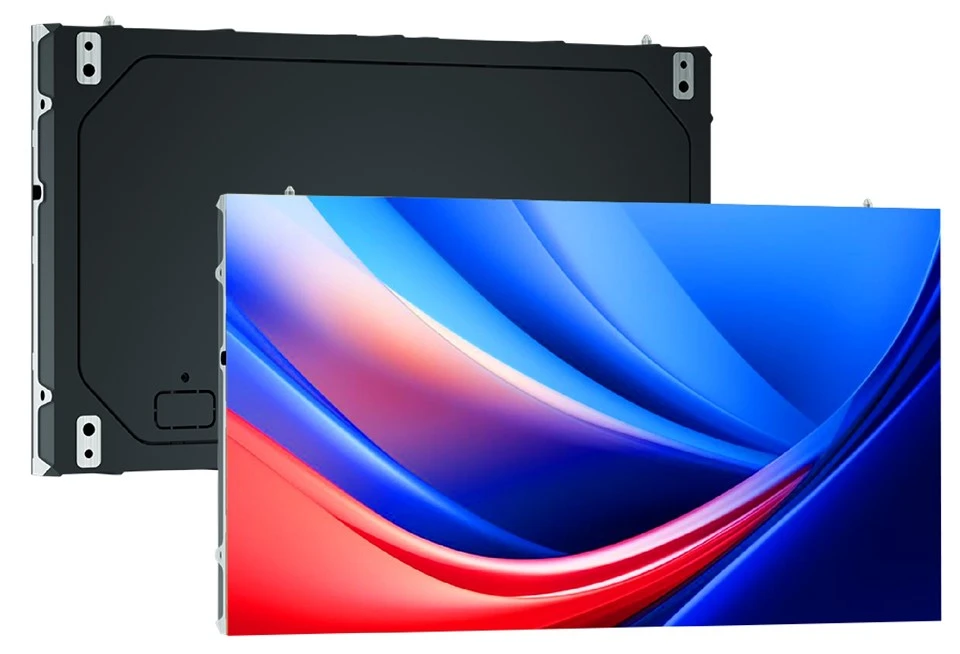

Litestar LCP PRO Indoor Fine Pitch COB LED Display Screen Panel
Commercial LED display solution
LCP PRO SERIES
The LCP PRO Series is a premium indoor LED display solution engineered for high-end commercial and professional environments. Combining Flip-Chip COB technology, a native 16:9 cabinet design, ultra-slim construction, and high-performance visual technology, it delivers exceptional image quality, reliable operation, and a clean, seamless appearance. Designed for close-viewing applications, the LCP PRO Series delivers fine-pitch clarity, deep blacks, vibrant colors, smooth motion, and excellent viewing consistency-making it an ideal solution for modern professional display environments.

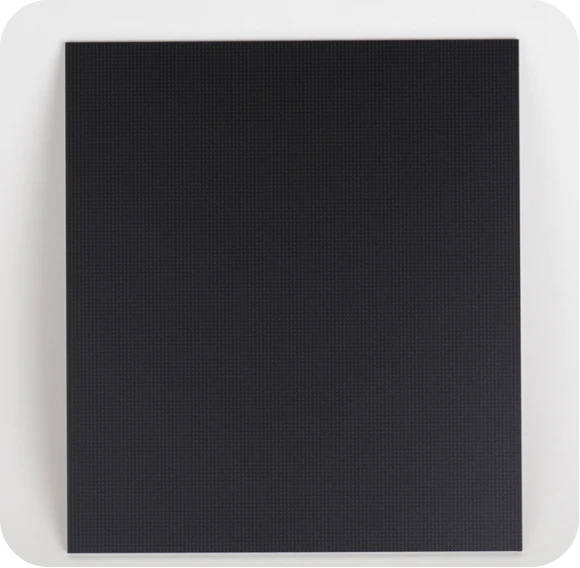

01 - Flip-Chip COB Technology - Enhanced Protection. Superior Reliability
Advanced Flip-Chip COB (Chip-on-Board) technology mounts LED chips directly onto the PCB without conventional wire bonding. The integrated COB structure provides:
- Enhanced protection against impact, dust and accidental contact
- Improved heat dissipation and thermal stability
- Excellent surface flatness and visual uniformity
- A cleaner, more refined black display surface
- Enhanced reliability and long-term durability
- Reduced risk of LED damage during installation and daily operation
The result is a premium, robust and highly integrated LED display surface designed for demanding indoor applications.
02 - Native 16:9 Cabinet Design - Designed for Modern Video Content

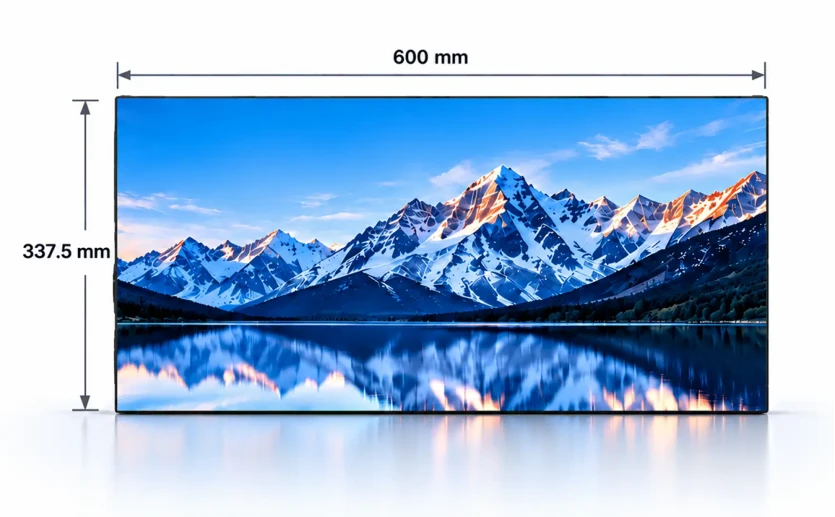

The 600 × 337.5 mm cabinet features a precise 16:9 aspect ratio, perfectly matching mainstream video and content formats.
- Easy configuration of standard 16:9 displays
- Optimized screen layouts with minimal content cropping
- Natural compatibility with Full HD, 4K and other standard video formats
- Clean and consistent cabinet alignment
- Flexible large-screen configurations
600 × 337.5 mm | Native 16:9 COB LED Panel

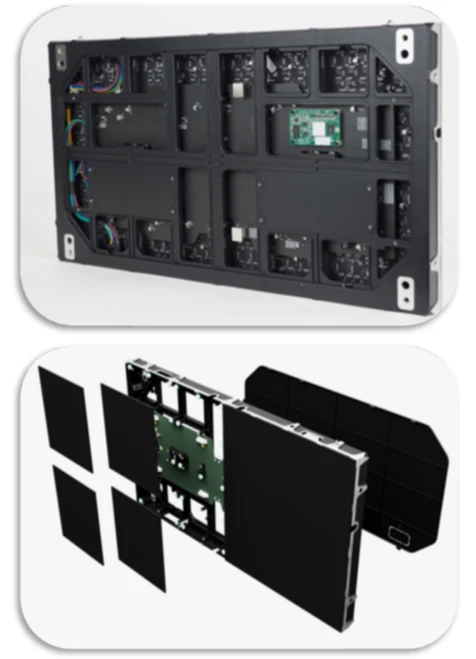

03 - Ultra-Slim & Lightweight - Maximum Visual Impact. Minimum Installation Space

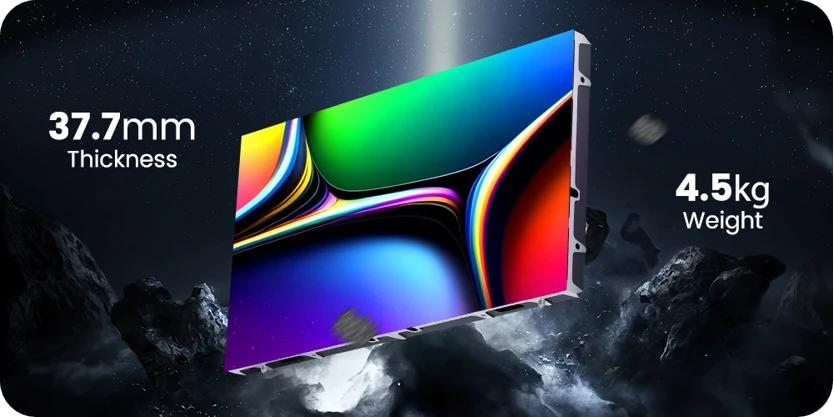

With a cabinet depth of only 37.7 mm, the LCP PRO Series provides an exceptionally slim profile for premium indoor installations.
- Ultra-slim construction
- Lightweight handling
- High structural precision
- Excellent cabinet flatness
- Stable and accurate splicing
Its compact design makes it particularly suitable for wall-mounted and space-constrained installations.

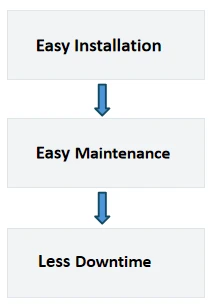

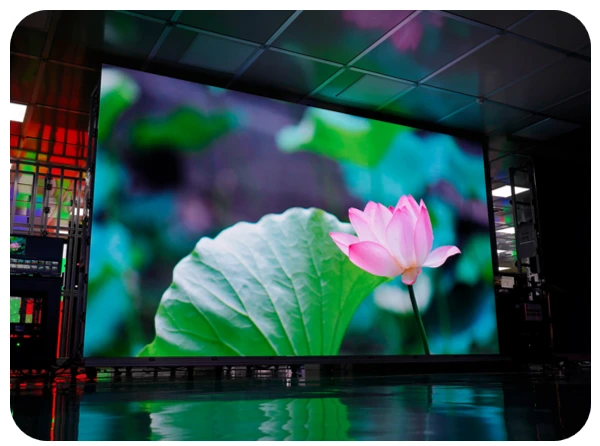

04 - Front Maintenance - Easy Access. Minimal Downtime

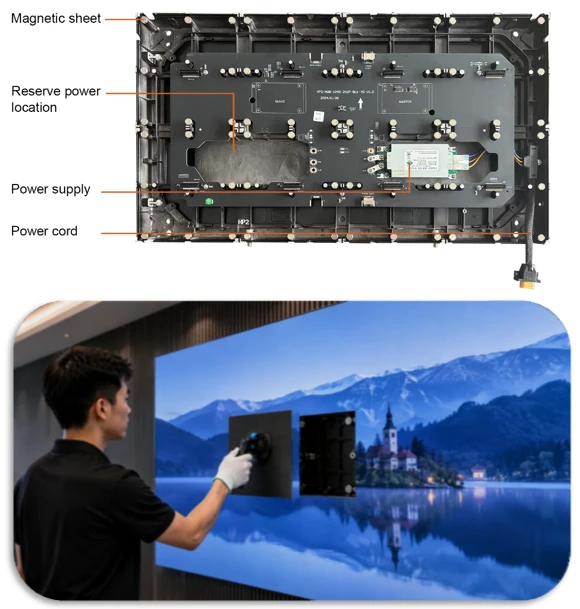

The LCP PRO Series is designed for complete front access maintenance. Modules, power supplies and receiving cards can be serviced from the front, allowing the display to be installed close to the wall without requiring rear access. This provides:
An ideal solution for conference rooms, control rooms and other permanent indoor installations where installation space is limited.
05 - PROFESSIONAL VISUAL PERFORMANCE
Fine-Pitch Clarity, Designed for close-viewing environments, the LCP PRO Series supports fine pixel pitches such as P0.7 P0.9, P1.2, and P1.5, delivering high pixel density for:
- Sharp text
- Fine graphics
- Detailed images
- Smooth video playback
- Excellent close-range viewing
Deep Black & High Contrast The premium COB black surface enhances perceived contrast and produces deeper blacks, richer colors and greater image depth, particularly in dark scenes.

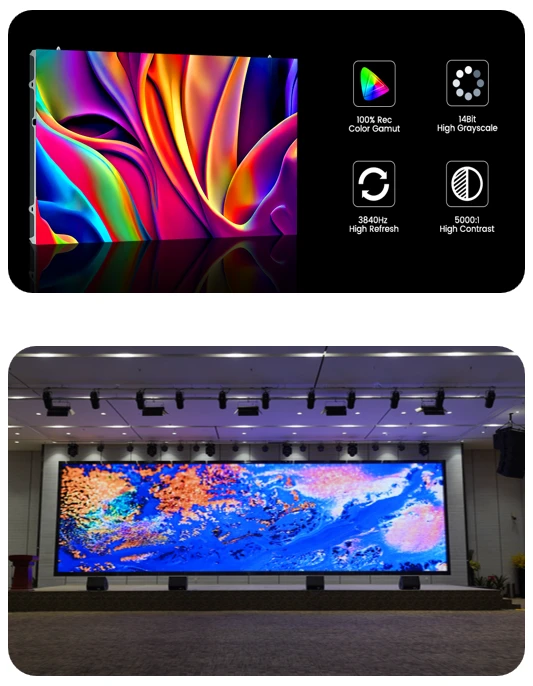

06 - High Refresh Rate - 3840 Hz
A 3840 Hz refresh rate provides smooth, stable visuals with significantly reduced flicker. It is especially suitable for:
- Broadcast studios
- Video production
- Professional presentations
- Live-event environments
- Camera-facing applications
Fast-moving content remains smooth and clear, while reduced flicker provides a more comfortable viewing experience.
07 - PROFESSIONAL VISUAL PERFORMANCE
14-bit Grey Scale
With 14-bit grey scale, the LCP PRO Series delivers smooth tonal transitions and detailed image reproduction, particularly in dark and low-light scenes.
Wide Viewing Angle
With a viewing angle of up to 165° horizontally and vertically, the display maintains consistent image quality across a wide audience area, minimizing brightness and color variation from different viewing positions.
High Brightness Uniformity
Brightness of 600 cd/m² with ≥97% brightness uniformity ensures a consistent and balanced image across the entire display.
08 - EFFICIENT & RELIABLE OPERATION
Low Power Consumption With average power consumption of ≤120 W/m², the LCP PRO Series is designed for efficient long-term operation. Lower power consumption helps reduce:
- Operating costs
- Heat generation
- Cooling requirements
- Long-term energy consumption
Combined with the robust COB structure and precision-engineered cabinet, the LCP PRO Series provides a stable solution for continuous professional use.
09 - Core specifications are ready for commercial LED projects
10 - DESIGNED FOR PREMIUM APPLICATIONS

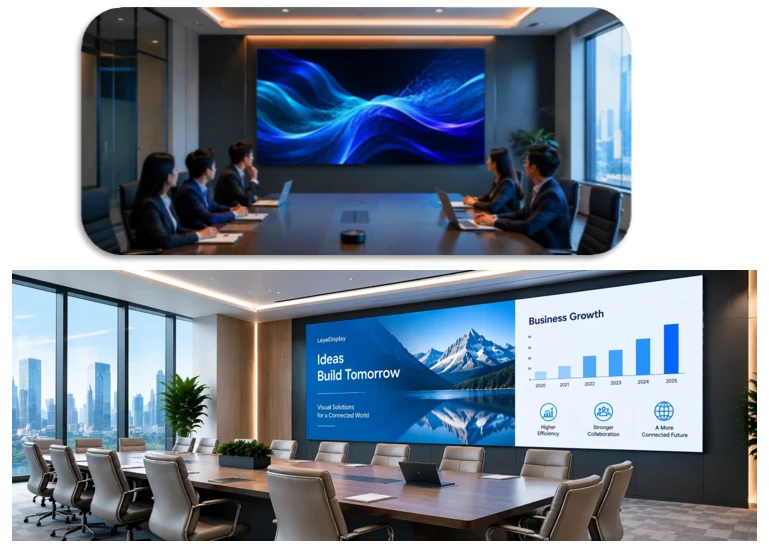

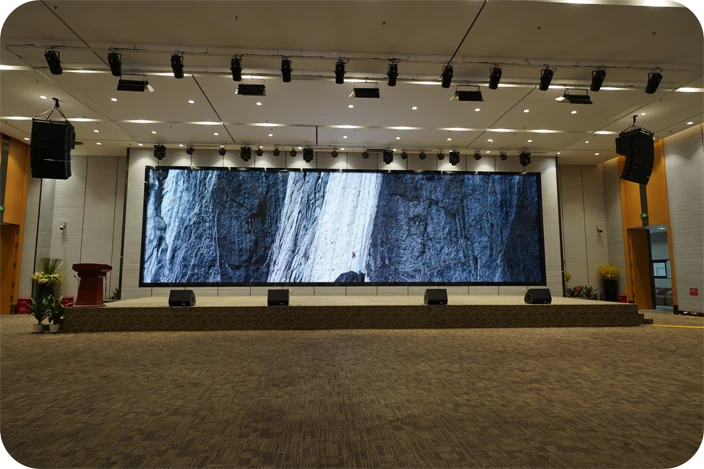

Conference Rooms
High-resolution presentations, video conferencing and corporate communication.
Control Rooms
Clear, continuous visualization with reliable professional performance.

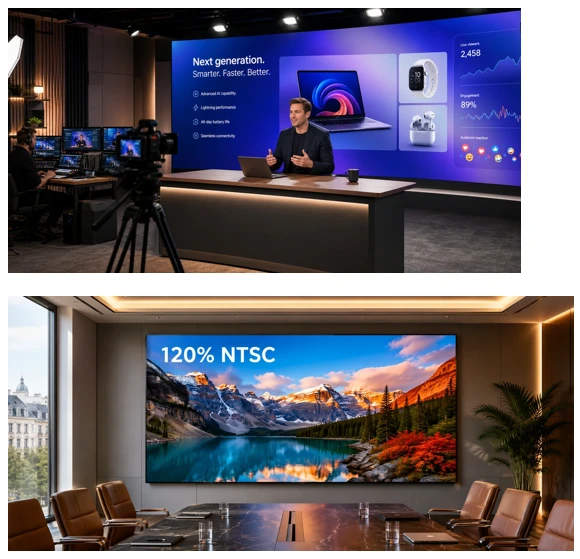

Broadcast & News Studios
High refresh rate, low flicker and camera-friendly visual performance.
11 - DESIGNED FOR PREMIUM APPLICATIONS
Metro & Transportation Interiors
Slim, lightweight construction with robust COB protection and easy front maintenance.
Corporate & Commercial Spaces
Premium visual quality for executive environments, showrooms and digital signage.
