Pixel Pitch | P1.2 | P1.5 | P1.9 | P2.5 |
LED Type | SMD1010 | SMD1010 | SMD1515 | SMD2020 |
Pixel Density/m² | 619,360dots | 396,390dots | 275,270dots | 146,810dots |
Module Dimension | 152.43*343.08 | 152.43*343.08 | 152.43*343.08 | 152.43*343.08 |
Cabinet Dimension | 610*343mm | 610*343mm | 610*343mm | 610*343mm |
Cabinet Material | Die cast alu | Die cast alu | die cast alu | die cast alu |
Cabinet weight | 6kgs | 6kgs | 6kgs | 6kgs |
Maintenance way | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
Brightness | ≥600nits | ≥600nits | ≥600nits | ≥600nits |
Refresh Rate | ≥3,840Hz | ≥3,840Hz | ≥3,840Hz | ≥3,840Hz |
Scan Mode | 1/30 | 1/27 | 1/30 | 1/32 |
Gray Scale | 16bit | 16bit | 16bit | 16bit |
Power consuption/m² | 1050/350w/m² | 760/255w/m² | 700/235w/m² | 570/190w/m² |
Contrast | 8,000:1 | 8,000:1 | 8,000:1 | 8,000:1 |
Viewing Angle | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
Input Voltage | AC110/240V | AC110/240V | AC110/240V | AC110/240V |
Lifespan | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs |
MTBF | >10,000hrs | >10,000hrs | >10,000hrs | >10,000hrs |

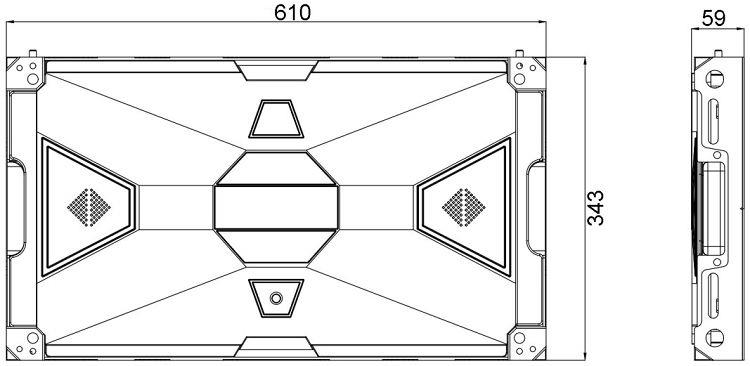

Ultra Light Weight and Thin Die casting Aluminum Cabinet
Cabinet thickness include module is only 59mm
Cabinet weight is only 6kgs
