If you are interested in our litestar ofe e series light weight/slim fixed outdoor led display screen with front/rear service front/rear maintenance front/rear access die-cast aluminum cabinet ip66 high waterproof for dooh/outdoor advertising/pole standing/wall mount/curved shape application, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.

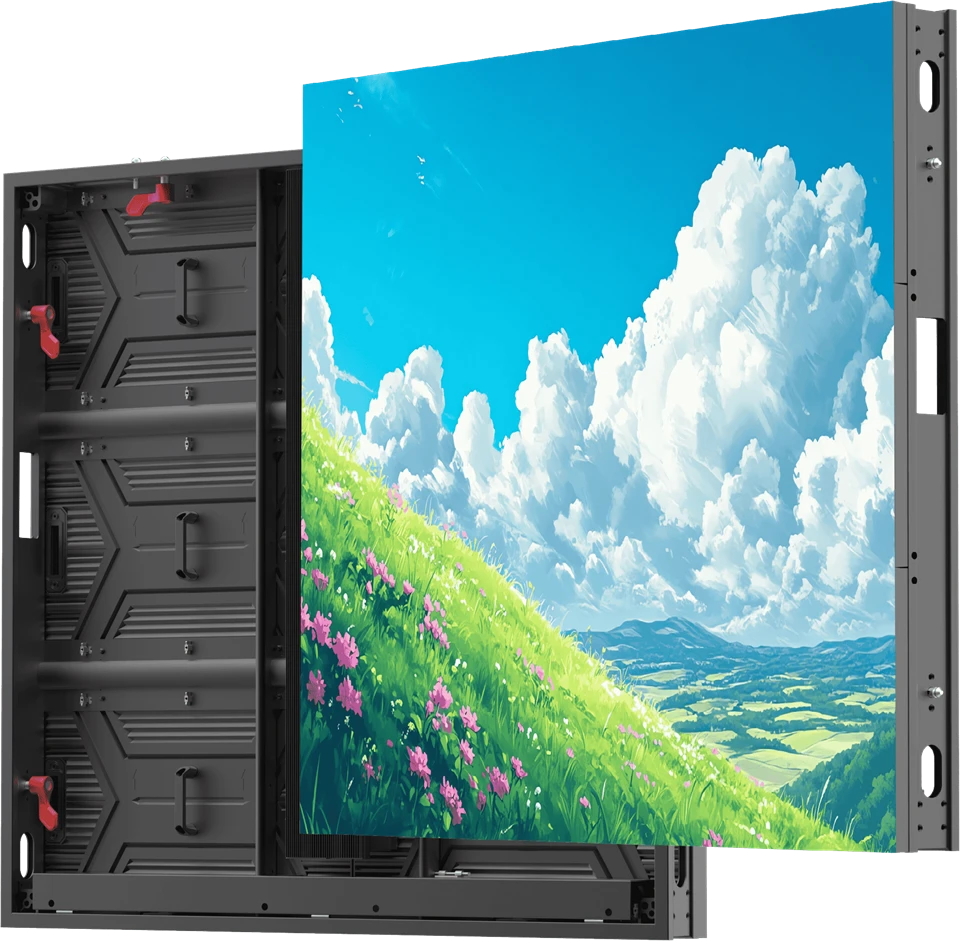

Cabinet Appearance

Panel Details

Technical Parameter
|
Product model |
P4 |
P5 |
P6.67 |
P8 |
P10 |
|
Pixel pitch |
4.0mm |
5.0mm |
6.67mm |
8.0mm |
10.0mm |
|
Module size |
480*320mm |
480*320mm |
480*320mm |
480*320mm |
480*320mm |
|
Module resolution |
120*80 |
96*64 |
72*48 |
60*40 |
48*32 |
|
Pixel composition |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727 |
|
Scanning method |
1/10S |
1/8S |
1/6S |
1/5S |
1/2S |
|
Refresh rate |
≥3840Hz |
≥3840Hz |
≥3840Hz |
≥3840Hz |
≥3840Hz |
|
Gray scale |
14bit |
14bit |
14bit |
14bit |
14bit |
|
Brightness |
≥5000cd/m² |
≥5000cd/m² |
≥5500cd/m² |
≥6000cd/m² |
≥6000cd/m² |
|
Viewing angle(HV) |
140/140 |
140/140 |
140/140 |
140/140 |
140/140 |
|
Module current |
≤20A |
≤20A |
≤22A |
≤22A |
≤22A |
|
Cabinet size |
960mm*960mm*96mm |
||||
|
Cabinet weight |
25kg |
||||
|
Maintain connection method |
Hub connection and front&back maintainance |
||||
|
Cabinet resolution |
240*240 |
192*192 |
144*144 |
120*120 |
96*96 |
|
IP grade(front/back) |
IP65 |
||||
|
Input voltage |
110-220V;AC±10% |
||||
|
Working temperature |
-20℃/+85℃ |
||||
|
Aver power consumption |
215w/m² |
||||
|
Max power consumption |
650w/m² |
||||
Light Weight & Slim Cabinet
- Litestar OFE panel is 40% lighter than traditional Iron cabinet.
- The slim panel can minimize installation space and can also save transportation cost.

Module Front & Rear Serviceble
- The LED module is locking system which supports both front/rear side accessible and it makes installation and maintenance much easier.
- It can change modules in seconds to save labor cost and time.

HUB Hard Connection
- LED module fix on panel through HUB hard connector directly for more stable power and signal.
- Wireless design make the inner of the cabinets looks better and easier for installation & maintenance

Side Locks
- Stainless fast lock can ensure fast installation and also can guarantee good flatness.
- The faster lockers can also solve the misalignment problems between panels during installation

Excellent Heat Dissipation
- Air flow touch the module base and power box directly for better heating dissipation, no need air conditioners for cooling.
- Aluminum profiles deliver vastly better heat dissipation than traditional iron cabinets.

High Waterproof Rate
- IP66 Waterproof can stand any severe weather and envirenment.
- Sealed power box and modules make the display to be waterproof, dust-resistant, and corrosion-resistant.

Curved Shape Solution


- The standard panel can combined with a customized curved cabinet to make smooth and seamless 90 degee curve shape for naked 3D application.
High-Definition Image Quality
