P6 Light Weight Outdoor Rental LED Display With Die Casting Magnesium Panel With High Quality And High Brightness LEDs Support Hanging Installation

P6 Light Weight Outdoor Rental LED Display With Die Casting Magnesium Panel With High Quality And High Brightness LEDs Support Hanging Installation

Outdoor LED module (SMD3535) P6mm outdoor rental led display/screen 576x576mm light weight and thin magnesium led cabinet save transportation cost. High precision die-casting led panel for seamless joint Outdoor rental LED display / Outdoor rental video wall / Outdoor events led display/screen /...

Inquiry

  • Product Details

Outdoor LED module (SMD3535)


P6mm outdoor rental led display/screen

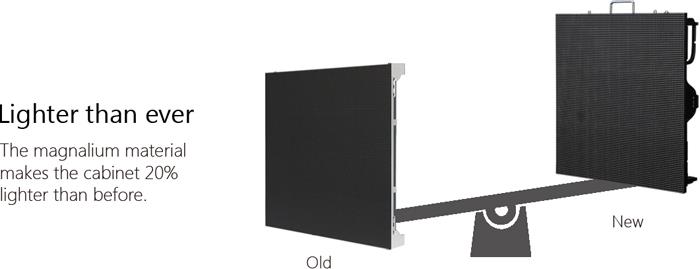

576x576mm light weight and thin magnesium led cabinet save transportation cost.

High precision die-casting led panel for seamless joint

Outdoor rental LED display / Outdoor rental video wall / Outdoor events led display/screen / Outdoor video boards rental

It is providing solutions for rental business such as outdoor events led panel, convert led panel, stages led panel, shows led panel, conference room led panel, TV stations led panel etc

3 years warranty

Model No.

P6

Pixel Pitch

6mm

LEDs

SMD3535

Module size(mm)

192x96mm

Panel Size ( L x W x H )

576x576mm

Panel Weight(Kgs)

8

Pixel Matrix Per Panel

80x80

Pixel Density /m2

27,777dots

Brightness

6,000 (cd/m2)

Colors

281 trillion

Viewing Angle

140°H and 140°v

Refresh Rate

≥1920Hz

Minimum viewing distance

6m

Scan Type

1/8

Defects Rate

≤0.0001

Lifetime

100,000 hours

MTBF

>10,000 hours

Power Consumption (Max / Avg)

750 / 250 w/m2

IP Rate

IP65 / IP43

Input Voltage (AC)

110V / 240V

Lifetime

100,000 hours

Operation systems

Win8/Win7/XP

Data transmission distance

CAT5/6 cable transmission distance 120m/max  Multi-mode fiber optics transmission distance 500m/max Single-mode

optic fiber transmission distance 10km/max

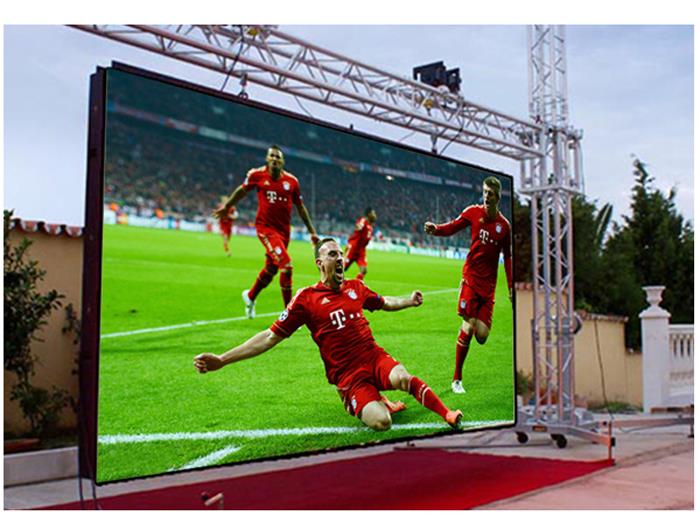

LED Display Project Picture for references

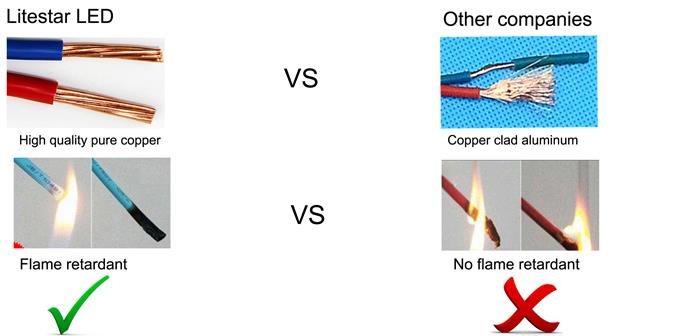

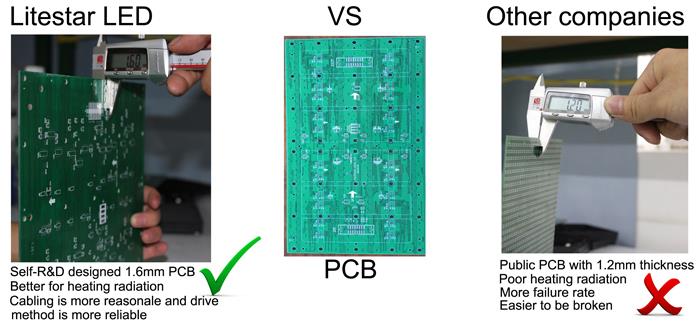

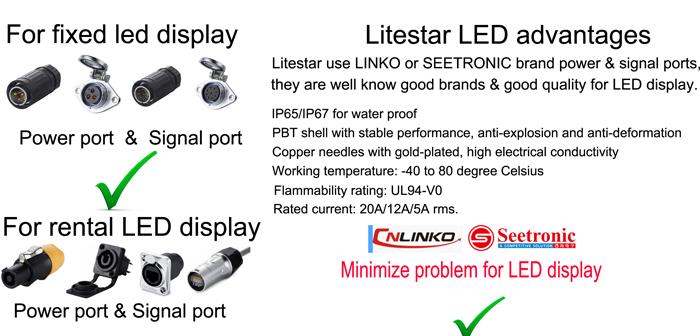

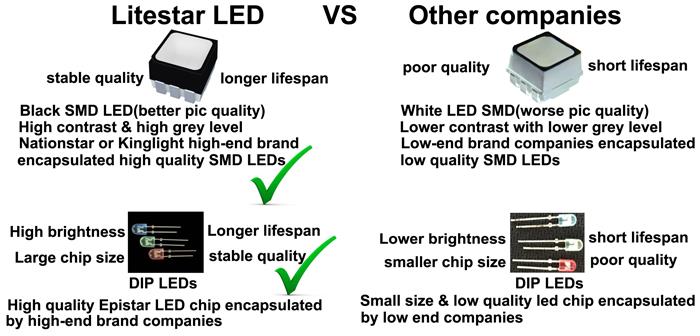

 LITESTAR LED main material advantages.















If you are interested in our p6 light weight outdoor rental led display with die casting magnesium panel with high quality and high brightness leds support hanging installation, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.
