P3/P4/P5/P6/P10mm Front Repairing / Front Access/ Front Service / Front Maintenance / Front Open LED Indoor LED Video Wall with Magnetic Suction Module for Wall Mounting Installation

P3/P4/P5/P6/P10mm Front Repairing / Front Access/ Front Service / Front Maintenance / Front Open LED Indoor LED Video Wall with Magnetic Suction Module for Wall Mounting Installation

Indoor front service LED panel P3/P4/P5/P6/P10mm indoor front repairing / front access/ front service / front maintenance / front open led display with magnetic suction module for wall mounting installation It is providing solutions for indoor commercial led display, wall mounted led video wall,...

Inquiry

  • Product Details



P3/P4/P5/P6/P10mm indoor front repairing / front access/ front service / front maintenance / front open led display with magnetic suction module for wall mounting installation



It is providing solutions for indoor commercial led display, wall mounted led video wall, shopping mall panel, hotel led video wall, meeting room panel shows led panel, TV stations led display, church led display etc


3 years   warranty

Model No.P3P4P5P6p10

Pixel Pitch

3mm6mm5mm6mm10mm

LEDs

SMD2121SMD3528SMD3528SMD3528SMD3528

Module  size

(mm)

192x192mm256x128mm160x160mm192x96mm320x160mm

Panel Size  ( L x W x H )

768x768x100mm768x768x100mm960x960x100mm

960x960x100mm

960x960x100mm

Panel Weight ( Kgs)

1413.51312.512

Pixel Matrix Per Panel

256x256192x192192x192160x16096x96

Pixel Density /m2

160,000 dots62,500 dots40,000dots27,777dots10,000 dots

Brightness

1,200 (cd/m2)1,200 (cd/m2)1,200 (cd/m2)1,200 (cd/m2)1,200 (cd/m2)

Colors

281 trillion281 trillion281 trillion281 trillion281 trillion

Viewing Angle

140°H and 140°v140°H and 140°v140°H and 140°v

140°H and 140°v

140°H and 140°v

Refresh Rate

≥1920Hz≥1920Hz≥1920Hz≥1920Hz≥1920Hz

Minimum viewing distance

3m6m5m 6m10m

Scan Type

1/321/161/81/81/4

Defects Rate

≤0.0001≤0.0001≤0.0001≤0.0001≤0.0001

Lifetime

100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours

MTBF

>10,000 hours>10,000 hours>10,000 hours>10,000 hours>10,000 hours

Power Consumption (Max / Avg)

950 / 450 w/m2760 / 250 w/m2720 / 240 w/m2480 / 144 w/m2400 / 134 w/m2

IP Rate

IP31IP31IP31IP31IP31

Input Voltage (AC)

110V / 240V110V / 240V110V / 240V110V / 240V110V / 240V

Operation   systems

Win8/Win7/XPWin8/Win7/XPWin8/Win7/XPWin8/Win7/XPWin8/Win7/XP

Data transmission distance

CAT5/6 cable transmission distance 120m/max

Multi-mode fiber optics transmission distance 500m/max Single-mode optic fiber transmission distance 10

km/max

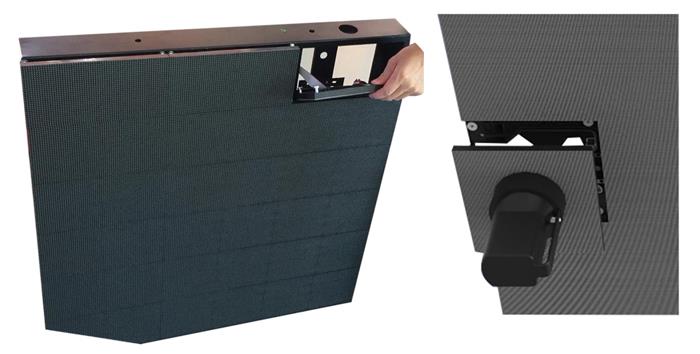

Magnetic suction LED modules can be open from front directly to save the installation time and labors.







LED Display Project Picture for references.

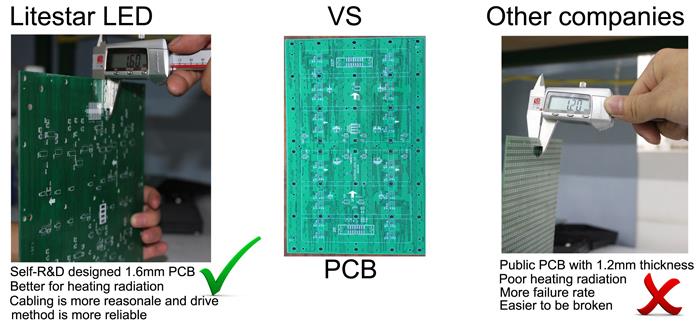

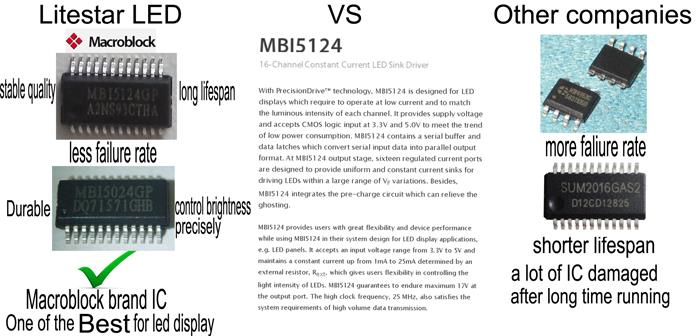

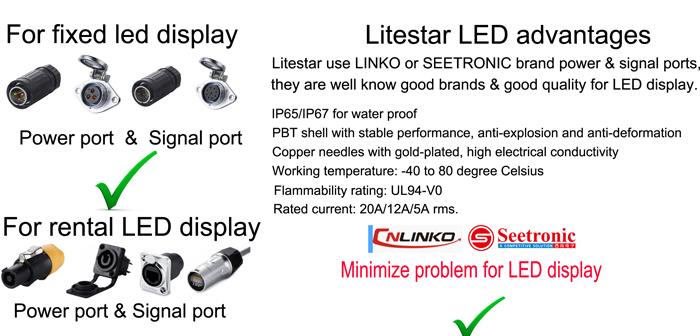

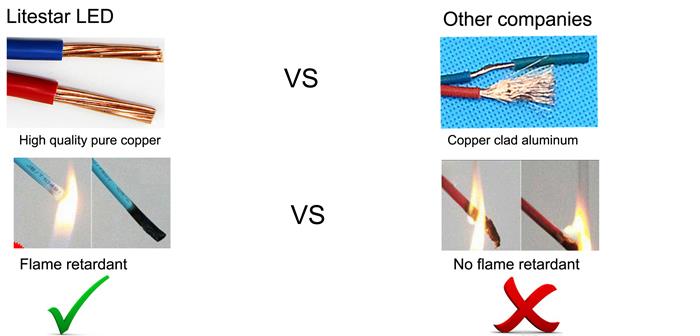

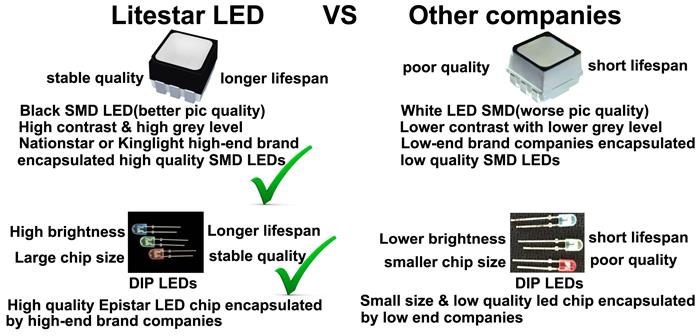

LITESTAR LED main material advantages.














If you are interested in our p3/p4/p5/p6/p10mm front repairing / front access/ front service / front maintenance / front open led indoor led video wall with magnetic suction module for wall mounting installation, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.
