P3.91/P4.81/P6.25 Indoor Light Weight Front Service/front Maintenance/front Open/front Repair/front Access LED Display with Magnetic Module Support Wall Mounting Installation

P3.91/P4.81/P6.25 Indoor Light Weight Front Service/front Maintenance/front Open/front Repair/front Access LED Display with Magnetic Module Support Wall Mounting Installation

250x250mm magnetic suction LED module P3.91/P4.81/P6.25 indoor light weight front service/front maintenance/front open/front repair/front access LED display with magnetic module support wall mounting installation. Ultra light weight and ultra thin led panel support both hanging and fixed...

Inquiry

  • Product Details



P3.91/P4.81/P6.25 indoor light weight front service/front maintenance/front open/front repair/front access LED display with magnetic module support wall mounting installation.

Ultra light weight and ultra thin led panel support both hanging and fixed installation.

High-precision die-casting magnesium led panel for seamless conjunction

Have 500x500 and 500x1000 panel size for options.

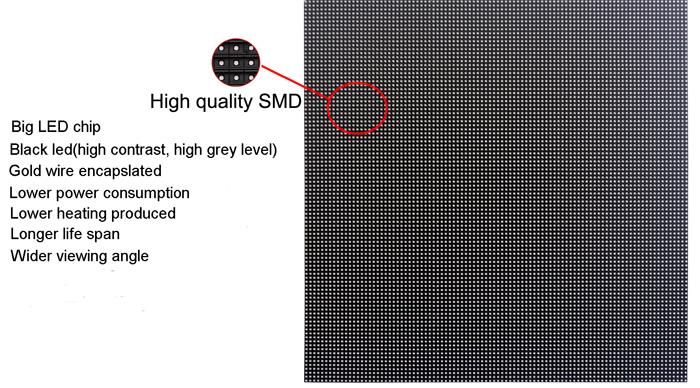

Big led size led chip for making the energy saving led display


It is providing solutions for shopping mall led screen, hospital led display, bank led display, exhibition led screen, sports led display, hotel led video wall, stage led display, airport led display, TV station led display etc

3 years   warranty

Model No.

P3.19P4.81P6.253.91p8p10

Pixel Pitch

3.91mm4.81mm6.25mm3.91mm4.81mm6.25mm

LEDs

SMD2121SMD2121SMD3528SMD2121SMD2121SMD3528

Module   size(mm)

250x250mm250x250mm250x250mm250x250mm250x250mm

250x250mm

Panel Size

( L x W xH)

500x1,000x70mm500x1,000x70mm500x1,000x70mm500x500x70mm500x500x70mm500x500x70mm

Panel Weight ( Kgs)

121110.565.85.5

Pixel Matrix Per Panel

128x256104x20880x160128x1281104x10480x80

Pixel Density /m2

65,025 dots43,264 dots25,600 dots65,025 dots43,264 dots25,600 dots

Brightness

1,200 (cd/m2)1,200 (cd/m2)1,200 (cd/m2)1,200 (cd/m2)1,200 (cd/m2)1,200(cd/m2)

Colors

281 trillion281 trillion281 trillion281 trillion281 trillion281 trillion

Viewing Angle

140°H and 140°v140°H and 140°v140°H and 140°v140°H and 140°v140°H and 140°v120°H and 120°v

Refresh Rate

≥1920Hz≥1920Hz≥1920Hz≥1920Hz≥1920Hz≥1920Hz

Minimum viewing distance

3.5m 4.5m6m 3.5m4.5m 6m

Scan Type

1/161/151/81/161/151/8

Defects

Rate

≤0.0001≤0.0001≤0.0001≤0.0001≤0.0001≤0.000

Lifetime

100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours

MTBF

>10,000 hours>10,000 hours>10,000 hours>10,000 hours>10,000 hours>10,000 hours

Power Consumption (Max / Avg)

800 / 264 w/m2670 / 220w/m2500 / 165 w/m2800 / 264 w/m2670 / 220 w/m2500 / 165 w/m2

IP Rate

IP31IP31IP31IP31IP31IP31

Input Voltage (AC)

110V / 240V110V / 240V110V / 240V110V / 240V110V / 240V110V / 240V

Lifetime

100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours

Operation

systems

Win8/Win7/XPWin8/Win7/XPWin8/Win7/XPWin8/Win7/XPWin8/Win7/XPWin8/Win7/XP

  Data

transmission distane

CAT5/6 cable transmission distance 120m/max

Multi-mode fiber optics transmission distance 500m/max Single-mode optic fiber transmission distance 10km/max

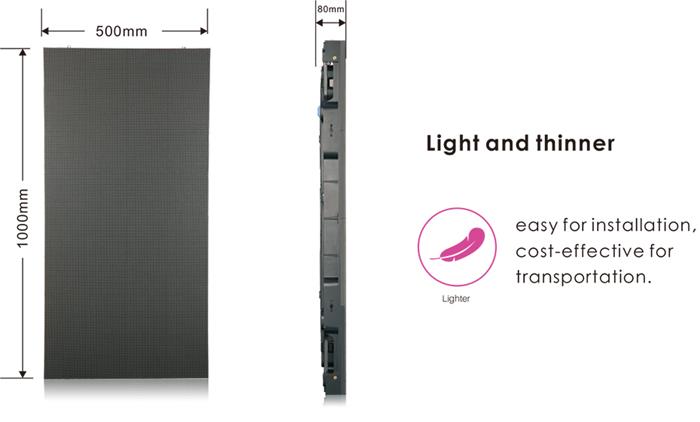

Have 500x1000mm and 500x500 LED cabinets for options

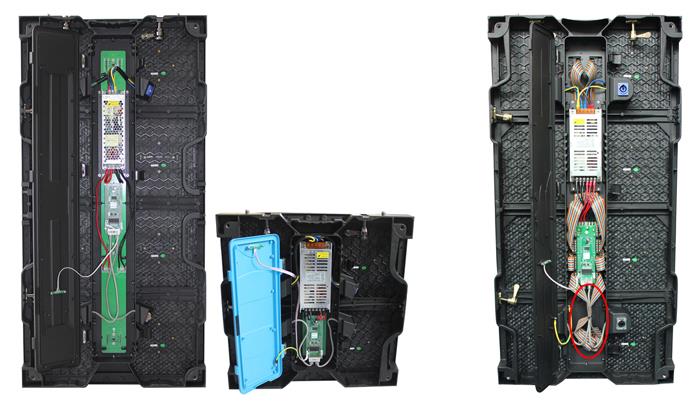

500x1000mm led panel                                  500x500 led panel

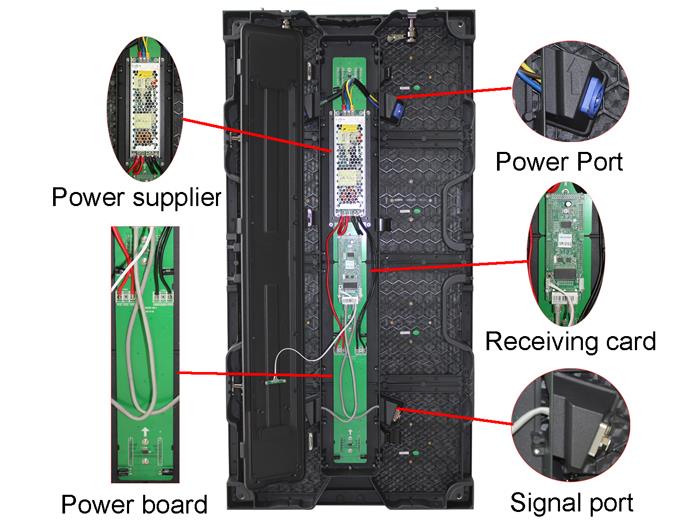

                                      Rear serving module

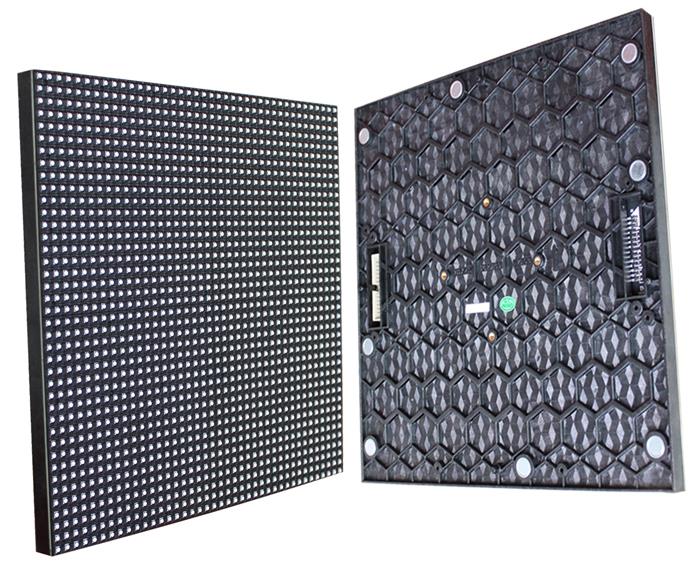

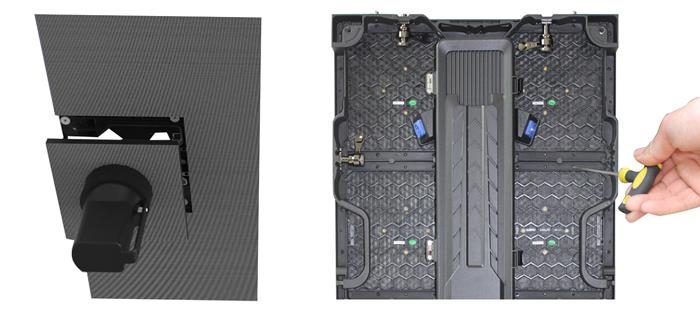

Front serving magnetic suction led module               Rear serving screws fixed led module



 Front open module                        Rear open module

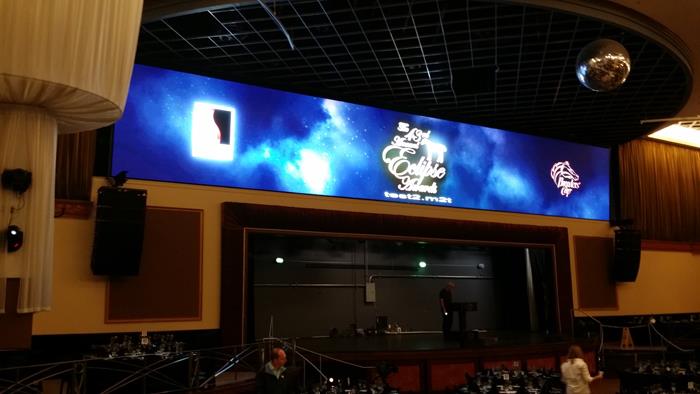

 LED Display Project Picture for references

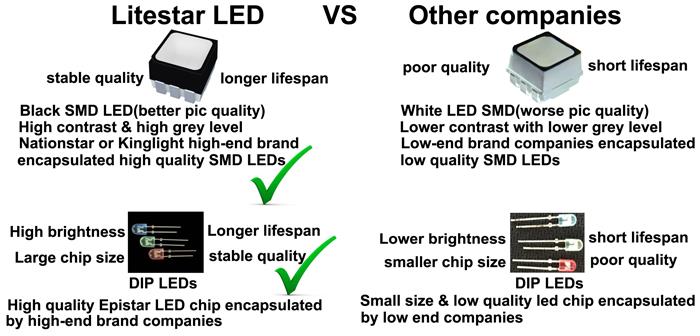

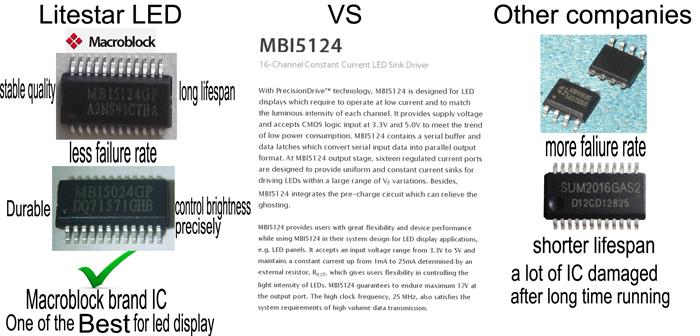

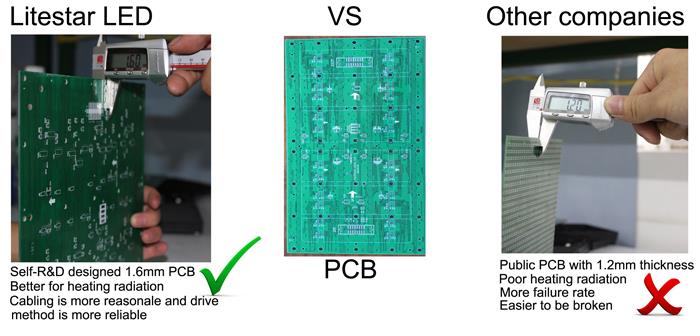

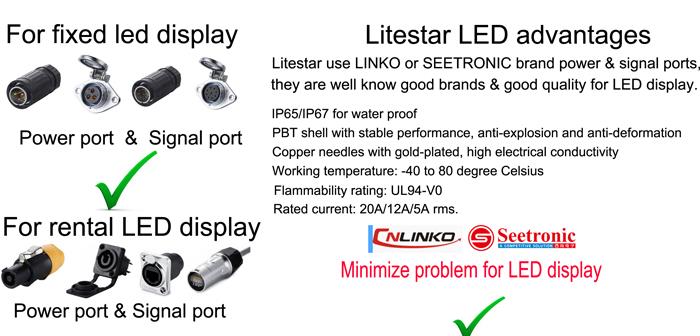

LITESTAR LED main material advantages













If you are interested in our p3.91/p4.81/p6.25 indoor light weight front service/front maintenance/front open/front repair/front access led display with magnetic module support wall mounting installation, welcome to buy the quality products with our factory. We are one of the leading LED display manufacturers and suppliers in China. The customized service and wholesale service are available.
